Mirrors (Open Operator’s Station)

AGCPTJD0716-UN-02NOV15

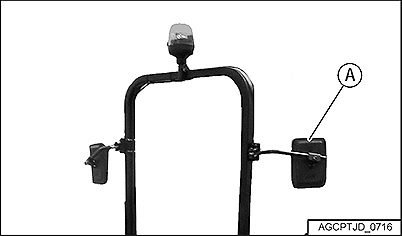

To adjust the mirror (A), loosen the clamp screw, move the mirror to the desired position and re-tighten the clamp screw.

CAUTION: Make sure that the mirrors are always clean and correctly adjusted.
