After the First 4 and 8 Hours of Operation

Tighten rear wheel nuts and bolts to specified torque

IMPORTANT: Check tightness of rim, disk and wheel bolts after 10 hours every time you replace wheels.

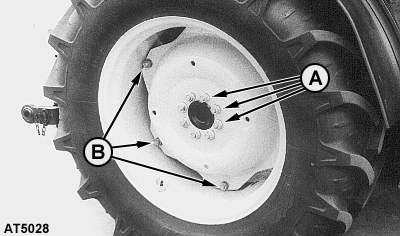

AT5028-UN-15AUG97

(A) - Disk to axle flange

(B) - Rim to disk

Item	Measurement	Specification
(A)	Torque	400 N˙m (295 lb-ft)
(B) M18 bolt	Torque	280 N˙m (207 lb-ft)
(B) M16 bolt	Torque	210 N˙m 155 lb-ft)

Tighten wheel nuts of front wheel drive axle

IMPORTANT: Check tightness of rim, disk and wheel bolts after 10 hours every time you replace wheels.

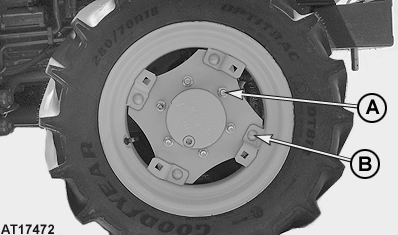

AT17472-UN-26JUL07

(A) - Disk to axle flange

(B) - Rim to disk

Item	Measurement	Specification
(A)	Torque	300 N˙m (220 lb-ft)
(B) M18 bolt	Torque	280 N˙m (207 lb-ft)
(B) M16 bolt	Torque	210 N˙m 155 lb-ft)

Tighten front wheel nuts and bolts to specified torque

IMPORTANT: Check tightness of rim, disk and wheel bolts after 10 hours every time you replace wheels.

M46420-UN-31JAN92

F-type tractors

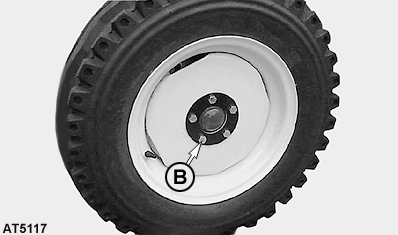

AT5117-UN-25OCT00

V-type tractors

(B) - Disk to axle flange

Item	Measurement	Specification
Disk to axle flange (tractors without front-wheel drive)	Torque	175 N˙m (130 lb-ft)

Adjustable front axle (tractors without front wheel drive)

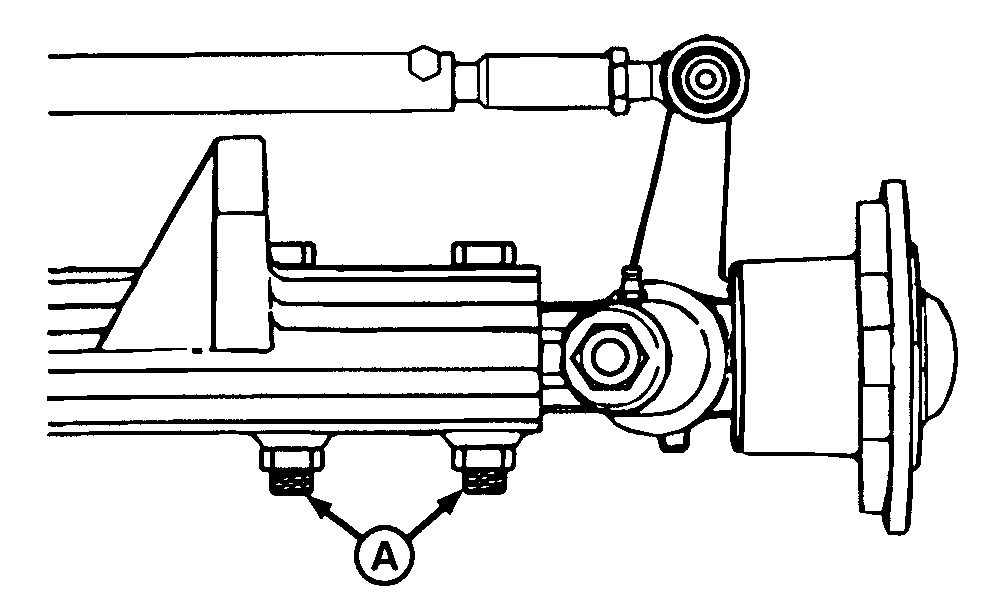

LV812-UN-20JUL94

(A) - Axle bolts

Item	Measurement	Specification
(A)	Torque	150 N˙m (110 lb-ft)

Engine

During the first 100 hours of operation:

• Operate the engine in the mid- to upper load range, and do not idle it for long periods of time.
• Check oil level in engine frequently.

IMPORTANT: Top up with oil only when the level has dropped to the “low” mark.

NOTE: During the break-in period a higher-than-usual oil consumption should be considered as normal.

If necessary, top up with oils according to standards ACEA E7 and API CI 3.

Recommended

• SAE 10W30
• SAE 15W40
• SAE 20W40
