Prestarting Checks


Check engine oil level

AGCPTJD0218
AGCPTJD0218-UN-02NOV15

5GL, 5075GV, 5085GV, 5075GN, 5085GN, 5075GF ,and 5085GF

AGCPDAJD0001
AGCPDAJD0001-UN-24OCT14

5100GN and 5100GF

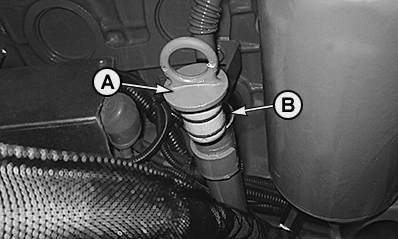

Check engine oil level. Remove dipstick (A), wipe clean and reinsert it fully. Remove and check oil level. Safe operating range is between the two marks on dipstick (A). Do not operate engine when oil level is below lower mark on dipstick (A). In this case add specified oil through filler neck (B). See Section 80, “Fuel, Lubricants, Hydraulic Oil and Coolant”


Check coolant level

CAUTION: Only remove radiator cap when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.

TS281
TS281-UN-15APR13

AGCPTJD0672
AGCPTJD0672-UN-01OCT14

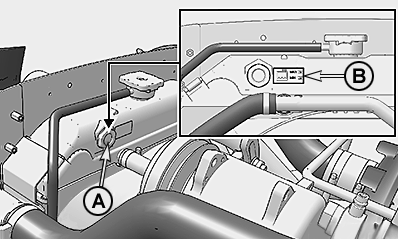

Check coolant level in radiator through the sight glass (A). Coolant level with a cold engine should be between the two marks on the decal (B). Add coolant if necessary.


Lubricate

Lubricate the following items every 10 hours of operation when operating in extremely wet or muddy conditions:

  • Front axle pivot pin
  • Front axle king pins
  • Tie rod ends

Use specified multi-purpose grease. See Section 80, “Fuel, Lubricants, Hydraulic Oil and Coolant”. For detailed information, refer to “Lubrication and Periodic Service” in Section 85.
