Speedometer, Revolution Counter and Hour Meter

AGCPTJD0630
AGCPTJD0630-UN-27OCT14

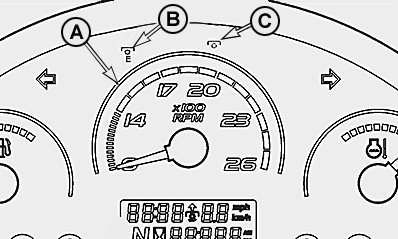

Revolution counter (A) shows engine rpm, read in hundreds.

For standard 540 rpm PTO speed, increase engine speed until needle is aligned with 1938 rpm mark (C).

For 540E PTO operation, increase engine speed until needle is aligned with 1648 rpm mark (B).
