Mechanical Hi-Lo Transmission

AGCPTJD0362
AGCPTJD0362-UN-11JUL13

The mechanical Hi-Lo transmission is available as an option for the 24/24 speed transmission.

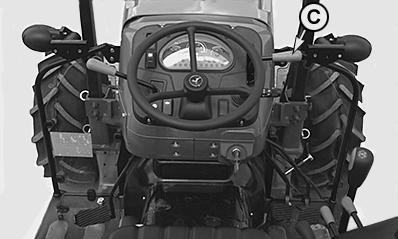

    With clutch pedal depressed, the mechanical Hi-Lo transmission can be shifted in any gear and on-the-go from low speed to high speed and vice versa, using lever (C).

  • Lever forward is high speed
  • Lever rearward is low speed

OULXBER,00024F6-19-20141024
