Electro-Hydraulic Hi-Lo Transmission

PULX003142-UN-17MAR09

AGCPTJD0629-UN-27OCT14

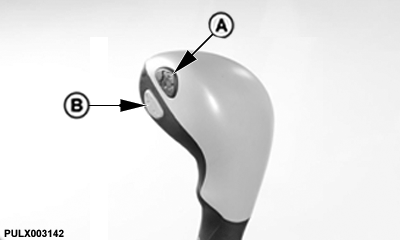

A - High speed

B - Low speed

C - Indicator light

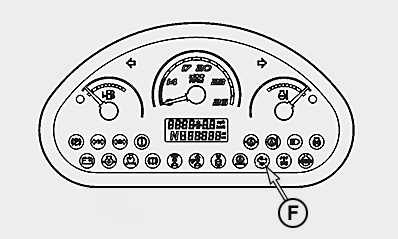

The electro-hydraulic Hi-Lo transmission is available as an option for the 24/24 speed transmission. The electro-hydraulic Hi-Lo transmission can be shifted in any gear, on-the-go and under load, without using the clutch from low speed to high speed and vice versa, using switches (A) and (B) located on the gear shift lever. When ”Hi” speed is selected the indicator light (F) at the dashboard lights up.
