Use Differential Lock

AGCPTJD0365-UN-11JUL13

AGCPTJD0626-UN-27OCT14

5V, 5N & 5F tractors

CAUTION: DO NOT operate tractor at high speed or attempt to turn with differential lock engaged.

IMPORTANT: To prevent damage to drive train, DO NOT engage differential lock when one wheel is spinning and the other is completely stopped.

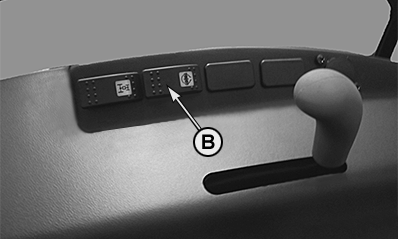

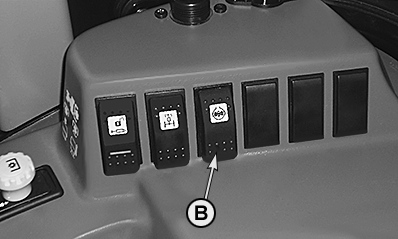

When one wheel starts to lose traction, engage differential lock using the switch (B).

IMPORTANT: The electro-hydraulic differential lock disengages automatically when an individual brake pedal is pressed and engages again after the pedal has been released. To disengage the differential lock, press switch (B) again.

When tractor speed exceeds 20 km/h (12 mph), the electro-hydraulic differential lock will disengage automatically.

Unequal traction will keep the lock engaged. When traction equalizes, lock will disengage itself by spring action. If lock does not disengage, depress one brake pedal and then the other.

If tires repeatedly slip, then get traction, then slip again, hold pedal in the engaged position.
