Use the Hitch Position Control

AGCPTJD0632-UN-27OCT14

PULX001011-UN-07AUG08

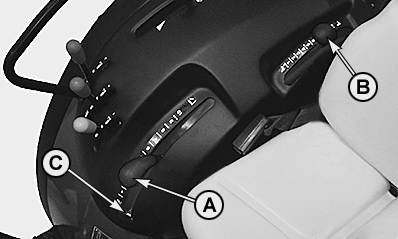

CAUTION: To prevent unexpected movement of hitch, move draft control lever (B) to full forward position before attaching an implement.

Move draft control lever (B) forward when you DO NOT want hitch to adjust automatically to draft load, such as attaching implement to tractor.

Use position control lever (A) to control the three-point hitch position. Position control should be used for transporting implements and end-of-field operations.

IMPORTANT: Be careful not to raise implement too far, as this may cause damage to the rear part of the tractor.

CAUTION: To avoid unintentional lowering of the implement during transport, use stop (C) to lock position control lever (A).

During transport and when hitch is not in use, push draft control lever (B) all the way forward.

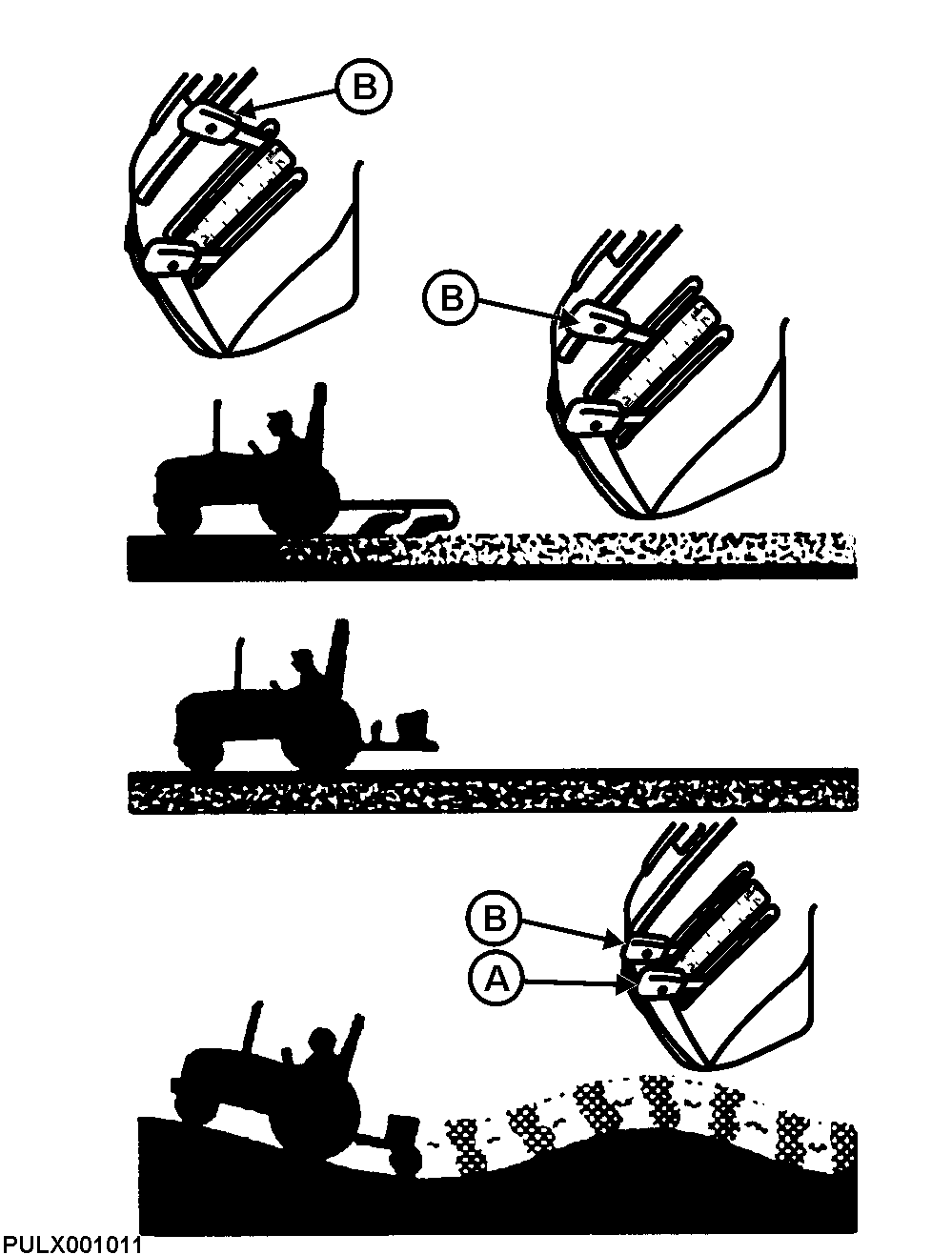

CONSTANT DEPTH of implements on level terrain and for non-ground engaging implements such as spreaders or sprayers. Place position control lever (A) at desired depth.

FLOAT operation for implements with skids or depth gauge wheels designed to carry full implement weight. Push both levers (A) and (B) all the way forward so implement can follow the ground contour.

AGCPTJD0633-UN-02NOV15

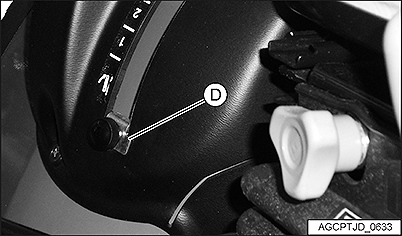

For convenience, set adjustable depth. Operate implement a few minutes to determine proper height, then unscrew ring nut (D). Move stop up against lever, and lock stop in position by tightening ring nut (D). Hitch will then lower to same position each time lever is pushed forward to stop.
