Flow Divider Valve and Flow Regulator Valve

AGCPTJD0419-UN-15JUL13

AGCPTJD0635-UN-29OCT14

AGCPTJD0636-UN-29OCT14

Tractor with cab shown

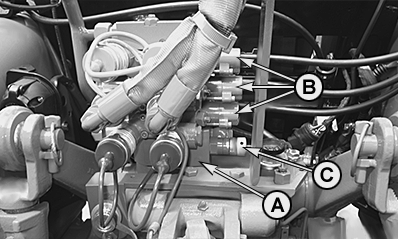

A - Flow Divider Valve

B - Double-Acting SCVs/hitch

C - Knob

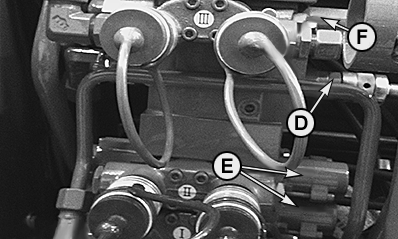

D - Flow Divider Valve

E - Double-Acting SCVs/hitch

F - Double-Acting SCVs

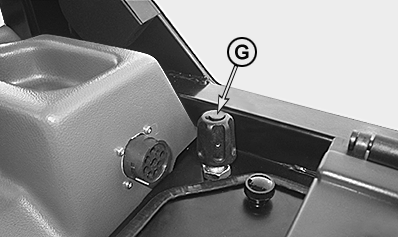

G - Knob (Cab Version)

Flow Divider Valve Control:

The tractor may be equipped with a flow divider valve (A), which splits the amount of oil for the SCVs between the double-acting SCVs/hitch (B) and hitch.

With knob (C), this allocation can be adjusted infinitely from 90% for hitch and 10% for double-acting SCVs to 10% for hitch and 90% for double-acting SCVs.

Turn knob (D) clockwise = Up to 90% of oil to SCVs I, II, III and hitch.

Turn knob (C) counterclockwise = Up to 90% of oil to SCVs I, II and III.

Flow Regulator Valve Control:

The tractor may be equipped with a flow regulator valve (D), which splits the amount of oil for the SCVs between the double-acting SCVs/hitch (E) and double-acting SCVs (F).

With knob (G), this allocation can be adjusted infinitely from 90% for double-acting SCVs (E) and 10% for double-acting SCV (F) to 10% for double-acting SCVs (E) and90% for double-acting SCV (F).

Turn knob (G) clockwise = Up to 90% of oil to SCVs I, II or III and hitch.

Turn knob (G) counterclockwise = Up to 90% of oil to SCV III or IV.

NOTE: On tractors equipped with third pump, the flow divider is used only to divide the flow for the SCVs.
