Adjust Sway Blocks

NOTE: Check implement operator's manual for instruction on whether to allow side sway.

PULX001057
PULX001057-UN-18AUG08

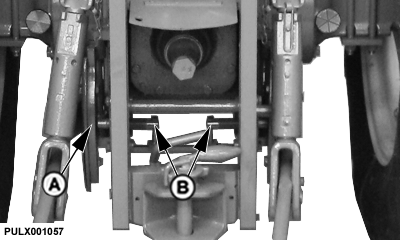

Sway blocks (A) are used to limit side sway of draft links. Adjust sway blocks by changing the length of the screws (B) on one side for work outside centered position of the implement.

If attachment (plow, disk) needs side sway in operating position, adjust sway blocks tight to the frame by turning screws (B).

When needed to limit side sway, adjust blocks out away from frame to contact draft links and limit side-to-side motion.

AGCPTJD0637
AGCPTJD0637-UN-02NOV15

Stabilizer Bars

Stabilizer Bars:

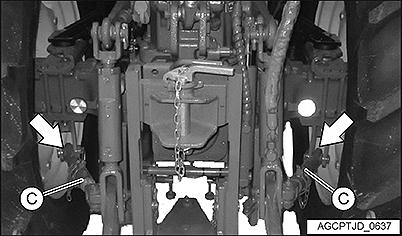

The draft links can be stabilized using these stabilizer Bars (C). No tools are required.

IMPORTANT: Do NOT let the draft links or lift links come into contact with the tires or other tractor components. When draft links are raised (even if no implement is attached), the stabilizer bars must be locked.

OULXBER,0002502-19-20141028
