3-Point Hitch Leveling System (If Equipped)

LX245324-UN-02OCT15

IMPORTANT: Check implement Operator’s Manual for instructions on whether to allow side sway.

The vertical and the horizontal position of implements can be adjusted by the Implement Alignment Valve Assembly. This is a hydraulic option, providing the following functions:

• Electrohydraulic central & lateral adjustment.
• Hydraulic levelling control.

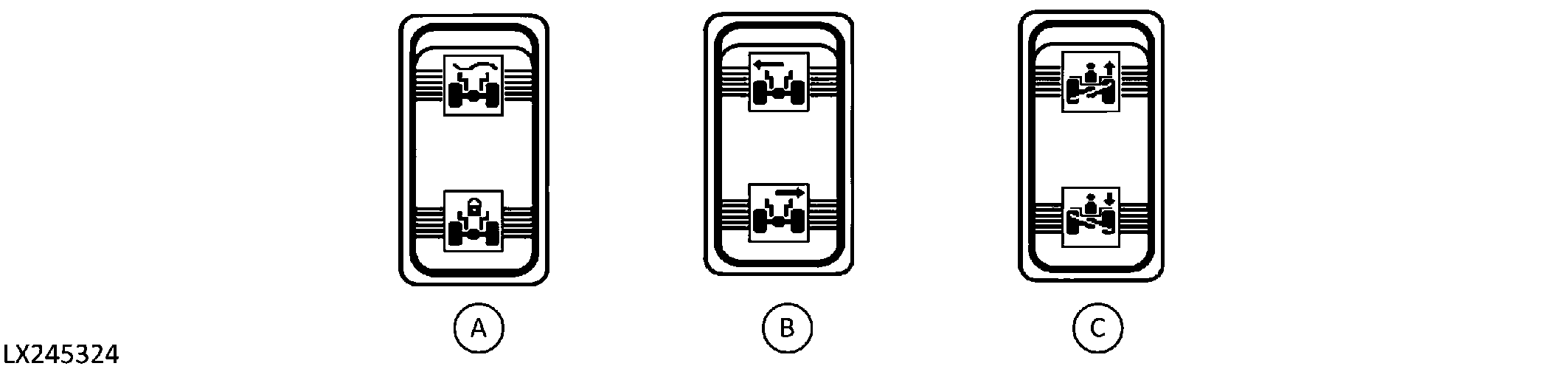

By using the switches (A), (B) & (C), it is possible to set the rear implement in to the desired position:

Functions of Switches
Switch	Description	Switch Up	Switch Down
A	to block the draft links or set the draft links in floating position	floating	blocked
B	to move the rear draft links on the left side or right side	lateral adjustment LEFT	lateral adjustment RIGHT
C	to extend or retract the hydraulic vertical rod	vertical adjustment of lift link, upward	vertical adjustment of lift link, downward
