Front-Hitch

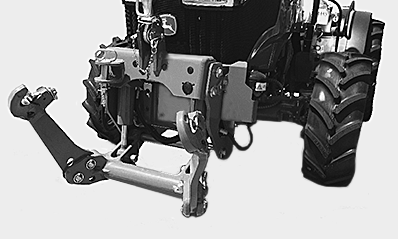

Front-hitch, controls:

AGCPTJD0657
AGCPTJD0657-UN-29OCT14

AGCPTJD0658
AGCPTJD0658-UN-29OCT14

AGCPTJD0659
AGCPTJD0659-UN-29OCT14

AGCPTJD0660
AGCPTJD0660-UN-29OCT14

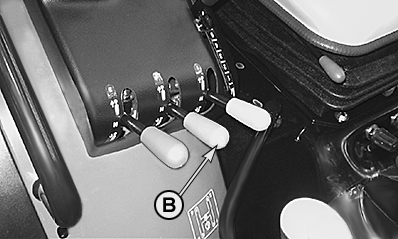

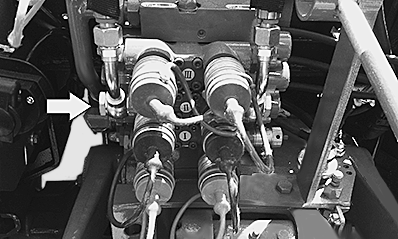

The front-hitch is operated by control lever (B) which controls the SCV at position II

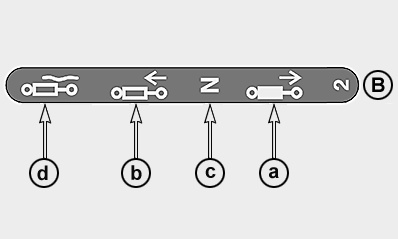

Position of control lever (B)

  • (a) front-hitch upward
  • (b) front-hitch downward
  • (c) neutral, the front-hitch is locked and cannot move
  • (d) floating position

Front-hitch, SCV connection:

SCV type:

SCV position:

I

II

III

IV

Mechanical

-

X

-

-

Electro-Hydraulic

X

-

-

-

SCV type:

Front quick coupler position:

I

II

III

IV

Mechanical

-

NP*

-

-

Electro-Hydraulic

X

-

-

-

* SCV II - The hydraulic connections are linked directly on the rear SCV’s


Front-hitch, draft links

AGCPTJD0661
AGCPTJD0661-UN-29OCT14

AGCPDJD0040
AGCPDJD0040-UN-13JAN14

AGCPDJD0041
AGCPDJD0041-UN-13JAN14

AGCPDJD0042
AGCPDJD0042-UN-13JAN14

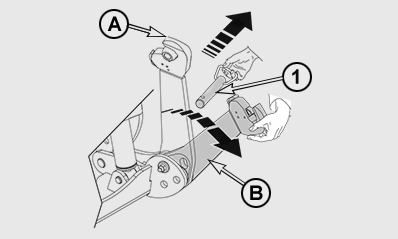

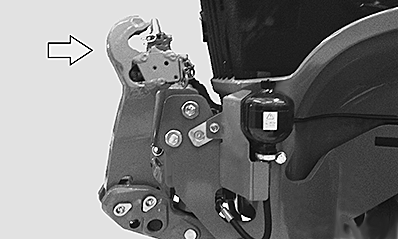

The photo shows the draft links in transport position. To change from transport position (A) to operating position (B) proceeded as follows on both draft links.

Remove quick-lock pin, then remove pin (1) and lower the lift arm until the bore is aligned with bore for position (C) or (D).

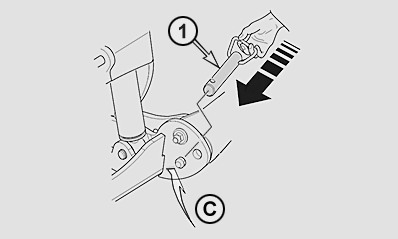

  • Insert pin (1) in bore (C) to lock lift arm in operating position

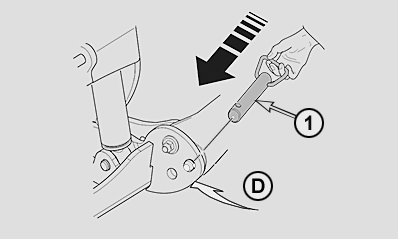

  • Insert pin (1) in bore (C) to allow float in operating position

CAUTION: Make sure that pins on both lift arms are secured with quick-lock pins all times.

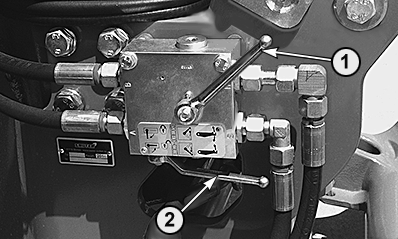

Front-hitch, shut-off valve

AGCPTJD0698
AGCPTJD0698-UN-29OCT14

Lever (1) - double action/single action

Lever (2) - lock/unlock

AGCPTJD0662
AGCPTJD0662-UN-29OCT14

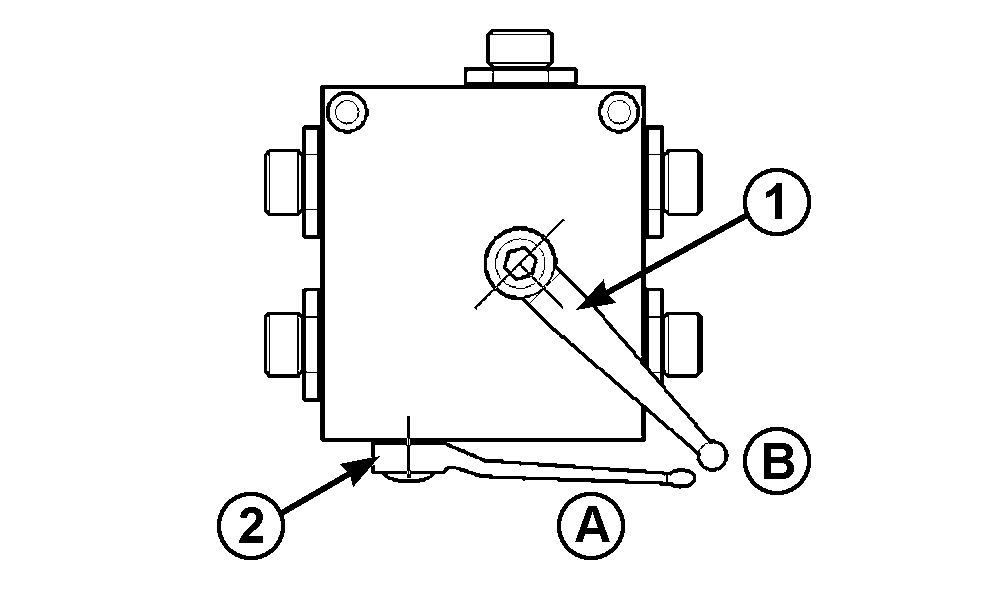

Setting for single action operation:

Lever (1) in position (B), lever (2) in position (A).

AGCPTJD0663
AGCPTJD0663-UN-29OCT14

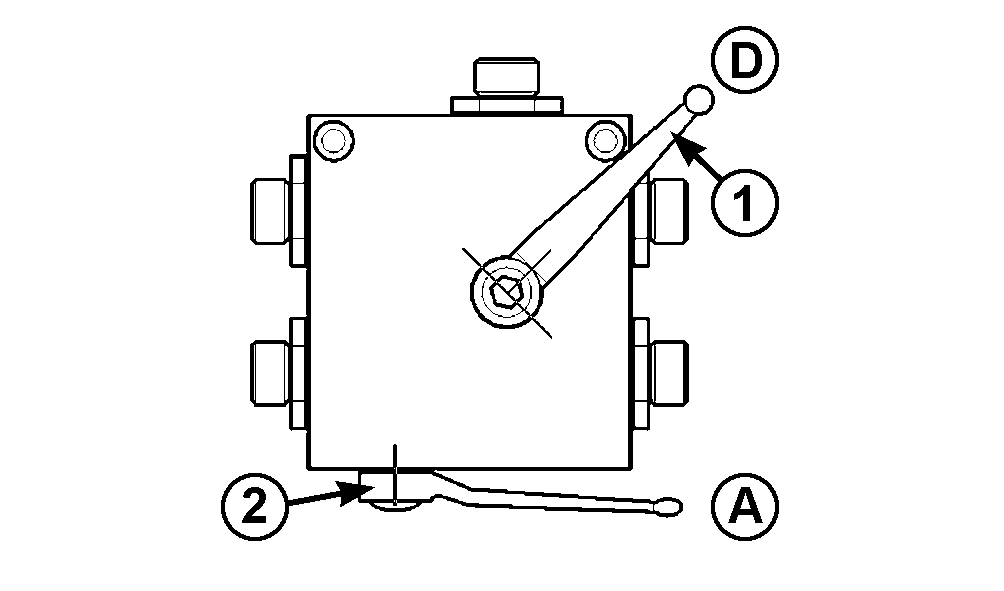

Setting for double action operation:

Lever (1) in position (D), lever (2) in position (A).

AGCPTJD0664
AGCPTJD0664-UN-29OCT14

Operation of valve must be inhibited when driving on roads always when the front-hitch is not in use.

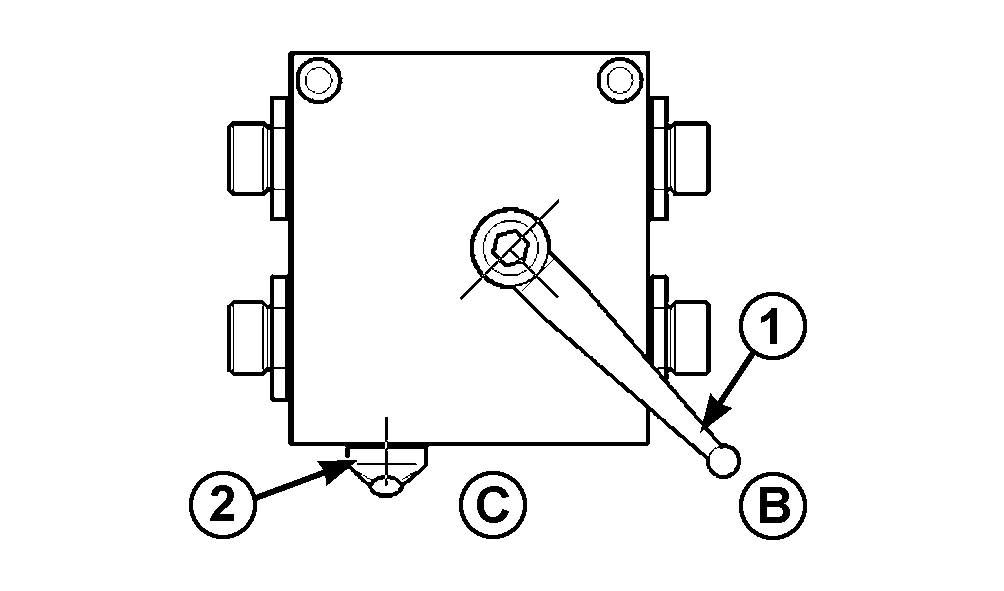

Setting to lock the valve:

Lever (2) in position (C), lever (1) in position (B).

CAUTION: : If SCV II is equipped with additional couplers towards the rear (for operation of rear implements), the shut-off valve must be locked before rear implements are operated using SCV II.
