Cold-Weather Operation

AGCPTJD0422
AGCPTJD0422-UN-15JUL13

5GL shown

AGCPTJD0644
AGCPTJD0644-UN-29OCT14

Mechanical version shown

AGCPTJD0638
AGCPTJD0638-UN-29OCT14

With 24/12 transmission

If the oil is cold, hydraulic functions including steering may be slow.

NOTE: Cold oil will not flow easily through the filter screen or hydraulic system filter (A).

Once the oil is warmed up, the hydraulic system (including the steering system) will operate normally again.

  1. IMPORTANT: To prevent damage to the hydraulic pump or relief valve, warm-up time MUST NOT be less than 2 to 3 minutes.

    Start engine and run it at about 1000 rpm.

  2. Turn and hold steering wheel in full left or right position.

NOTE:

AGCPTJD0639
AGCPTJD0639-UN-29OCT14

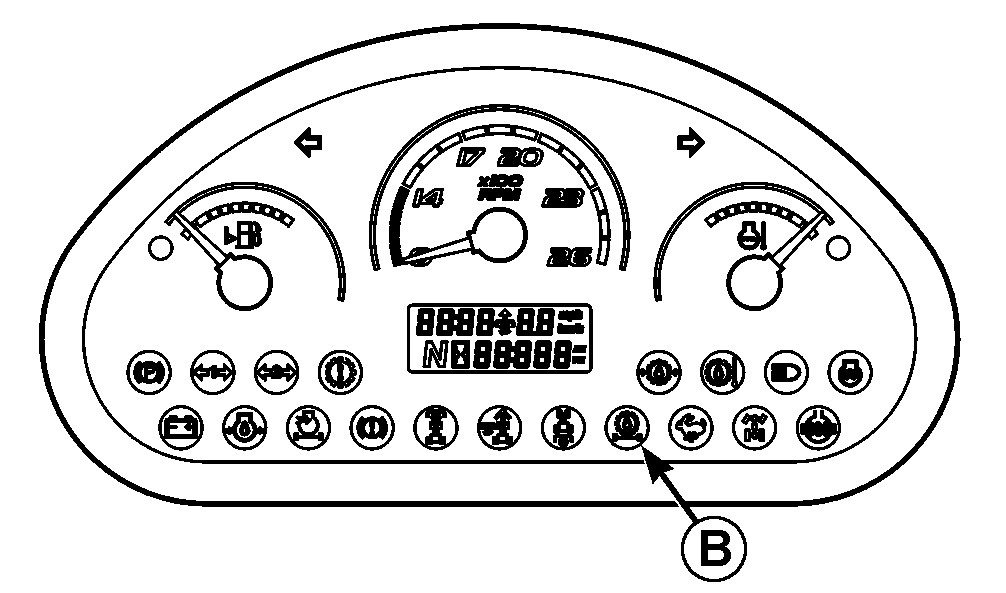

On Power Reverser transmission only. If the oil filter is clogged while oil is at normal operating temperature, transmission oil filter indicator light (B) will glow.
