Select Ground Drive PTO Speeds

AGCPTJD0640
AGCPTJD0640-UN-29OCT14

PTO Switch

AGCPTJD0643
AGCPTJD0643-UN-29OCT14

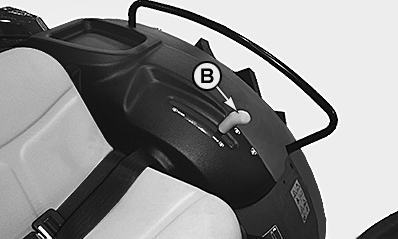

Ground Drive PTO (Electro-Hydraulic Version)

AGCPTJD0642
AGCPTJD0642-UN-29OCT14

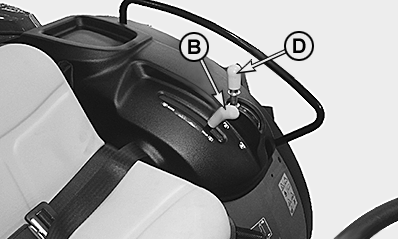

Ground Drive PTO (Mechanical Version)

A - PTO Switch

B - PTO Mode Selector Lever

D - PTO Egagement Lever

CAUTION: Pay attention to the direction in which the PTO stub shaft rotates. The PTO stub shaft changes the direction in which it rotates depending on whether the tractor is travelling forward or reversing. The ground speed PTO remains engaged until lever (B) is moved backward. The ground drive PTO remains active if it is already engaged when the engine is restarted; it starts to rotate as soon as the vehicle moves.

IMPORTANT: The tractor must be stationary to engage ground drive PTO. If engagement is not possible, slowly drive the tractor forward to allow the gears to mesh.

Mechanical version: Pull PTO engagement lever (D) rearward to disengage PTO.

  1. Pull PTO engagement lever (A) rearward to disengage PTO.

  2. Move PTO mode selector lever forward to engage ground drive PTO.

  3. Use PTO speed selector lever to select PTO speed (see table).

    Ground Drive PTO Speeds

    Number of PTO drive shaft revolutions per one revolution of rear wheels

    Tractor

    Speed selector lever at 540

    Speed selector lever at 540E

    Speed selector lever at 1000

    5GL, 40 Km/h

    9,1

    10,7

    16,6

    5GV 30 Km/h

    11,4

    13,4

    20,9

    5GV 40 Km/h

    9,1

    10,7

    16,6

    5GN 30 Km/h

    11,4

    13,4

    20,9

    5GN 40 Km/h

    9,1

    10,7

    16,6

    5GF 30 Km/h

    11,4

    13,4

    20,9

    5GF 40 Km/h

    9,1

    10,7

    16,6

    CAUTION: Always comply with implement specifications when selecting the PTO speeds.

    See additional information given in the Operator's Manual of the implement.
