Front PTO

CAUTION:

AGCPTJD0047
AGCPTJD0047-UN-23MAY13

The counterclockwise-rotating front PTO uses a stub shaft with six splines and operates at a rated speed of 1000 rpm (engine speed 2060 rpm).

AGCPTJD0750
AGCPTJD0750-UN-07NOV14

AGCPTJD0699
AGCPTJD0699-UN-29OCT14

Operating the front PTO:

CAUTION: Always disengage the PTO when not in use.

High-inertia implements do not come to a standstill the moment a PTO is shifted to the disengaged position. Do NOT approach the implement while it is coasting down. Do not work on the implement until it has stopped.

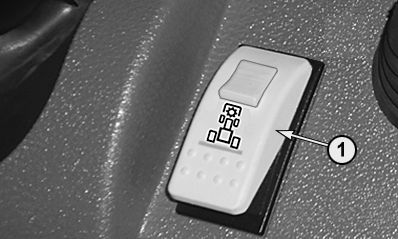

To switch on the Front PTO, release safety lock and operate the rocker switch (1).

The PTO starts to rotate and switch back light (1) up.

The light (1) is switched ON

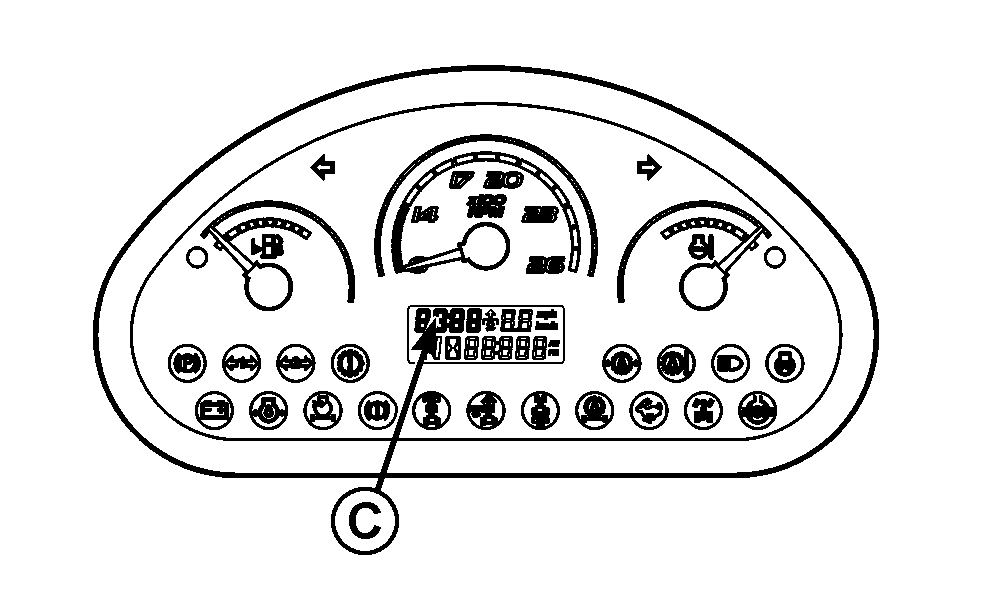

The current speeds of the Front PTO is displayed on the digital display (C).

To switch off the Front PTO, press rocker switch (1).

The light (1) is switched OFF.

NOTE: If the engine is shut off while the Front PTO is running in order to restart the Engine the Front PTO must be switch off by pressing rocker switch (1).

OULXBER,000250A-19-20141107
