Control Lever and Coupler Identification

AGCPTJD0645-UN-01OCT14

Tractor with 3 SCV's

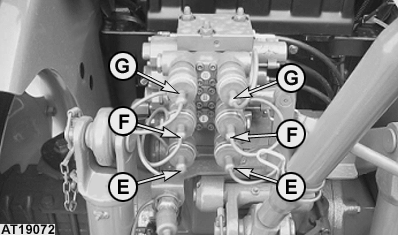

AT19072-UN-20SEP06

Tractor with 3 SCV's

AGCPTJD0647-UN-01OCT14

Tractor with 4 SCV's

AGCPTJD0650-UN-01OCT14

Tractor with 4 SCV's

The tractor can be equipped with:

Three additional double-acting SCVs.

• Fore-and-aft movement of lever (A) operates the couplers (E).
• Fore-and-aft movement of lever (B) operates the couplers (F)*.
• Fore-and-aft movement of lever (C) operates the couplers (G)*.

*if equipped

Four additional double-acting SCVs.

• Fore-and-aft movement of lever (A) operates the couplers (E).
• Fore-and-aft movement of lever (B) operates the couplers (F)*.
• Fore-and-aft movement of lever (C) operates the couplers (G)*.
• Fore-and-aft movement of lever (D) operates the couplers (H)*.

*if equipped

AGCPTJD0651-UN-01OCT14

AGCPTJD0650-UN-01OCT14

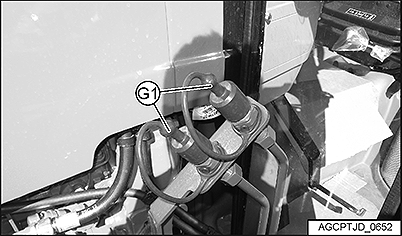

AGCPTJD0652-UN-02NOV15

Left side

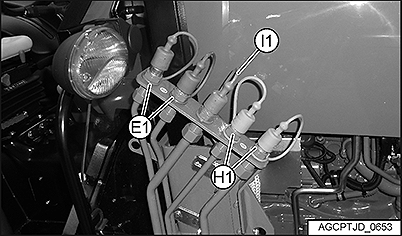

AGCPTJD0653-UN-02NOV15

Right side

The tractor can be equipped with four additional single/double –acting SCV’s and a flow divider valve.

• Fore-and-aft movement of lever (A) operates the rear couplers (E) and the mid-mounted couplers (E1).
• Fore-and-aft movement of lever (B) operates the rear couplers (F) and the mid-mounted couplers (F1).
• Fore-and-aft movement of lever (C) operates the rear couplers (G) and the mid-mounted couplers (G1).
• Fore-and-aft movement of lever (D) operates the rear couplers (H) and the mid-mounted couplers (H1).
• The flow regulator valve splits the amount of oil for the SCVs between the 3rd SCVs/hitch and 4th SCV

NOTE: On tractors equipped with third pump, the flow divider is used only to divide the flow for the SCVs.

Pressure-free return couplers (I) and (I1) are used to return oil from the equipment (implement) to the tank.
