Levers for Selective Control Valves

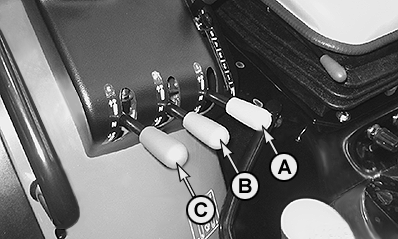

AGCPTJD0645-UN-01OCT14

Tractor with 3 SCV's shown

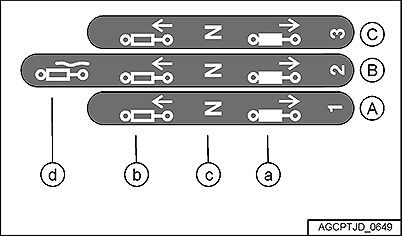

AGCPTJD0649-UN-02NOV15

Tractor with 3 SCV's shown

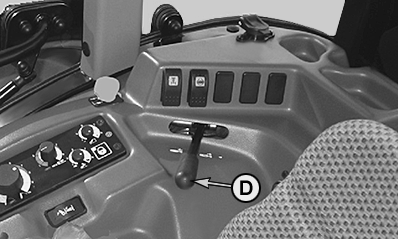

AGCPTJD0647-UN-01OCT14

Tractor with 4 SCV's shown

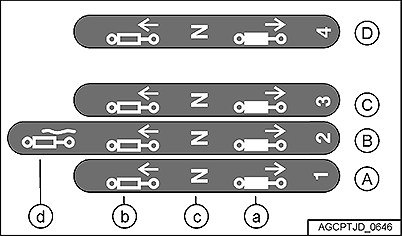

AGCPTJD0646-UN-02NOV15

Tractor with 4 SCV's shown

a - Retract

b - Extend

c - Neutral Position

d - Float Position

The control levers (A, B ,C and D) can have up to four settings depending on the configuration identified by the decals.

The remote cylinder retracts when the lever is moved backwards to the "Retract" position.

The remote cylinder extends when the lever is moved forward to the "Extend" position.

The remote cylinder is held in place when the lever is in "Neutral".

When the lever is in the "Float" position (i.e. piston moves freely inside remote cylinder), the mounted implement follows the ground contours.

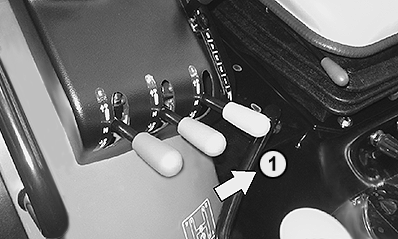

AGCPTJD0648-UN-01OCT14

The mechanical SCV’s are keeped in neutral position (safety condition) by a mechanical detention system.

In order to activate the SCV, pull lever as for direction (1), than move forward or backwards as needed.
