Fuel System Components

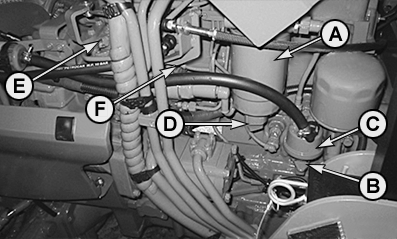

AGCPTJD0439-UN-17OCT13

Engine F5C

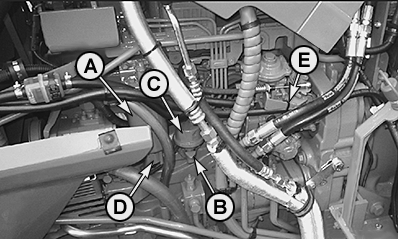

AGCPTJD0689-UN-02OCT14

Engine NEF

A - Fuel filter

B - Priming pump

C - Fuel transfer pump

D - Water separator bowl

E - Fuel injection pump

F - Electric fuel shut-off connector
