Engine Cooling System Components
AGCPTJD0673-UN-01OCT14
AGCPTJD0687-UN-02OCT14

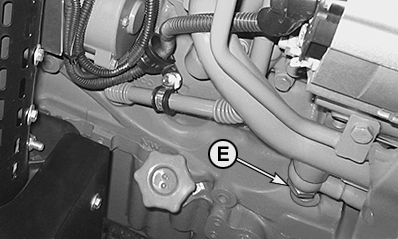

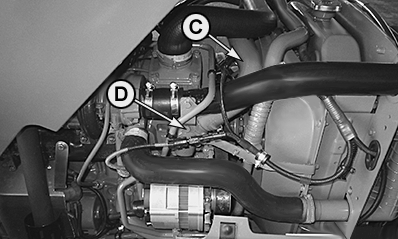

Engine F5C
AGCPTJD0688-UN-02OCT14
Engine F5C
AGCPTJD0703-UN-02OCT14

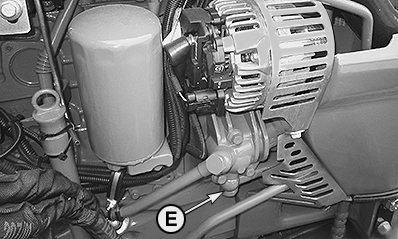

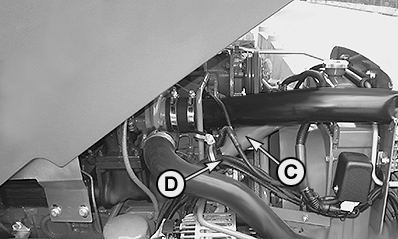

Engine NEF
AGCPTJD0700-UN-01OCT14
Engine NEF
A - Radiator
B - Sight glass
C - Upper Radiator Hose
D - Thermostat Housing
E - Coolant Drain Plug

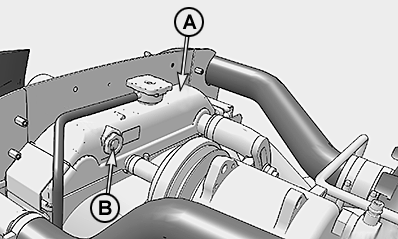

Check coolant level in radiator (A) throught the sight glass (B).
CAUTION: Only remove radiator cap when engine is cold. Slowly
loosen cap to first stop to relieve pressure before removing completely.
IMPORTANT: Never pour cold water into the cooling system of a hot engine, as it might crack cylinder block or head. DO NOT operate engine without coolant for even a few minutes.
|
