Check Engine Oil Level (NEF Engine)

LX211146
LX211146-UN-04NOV14

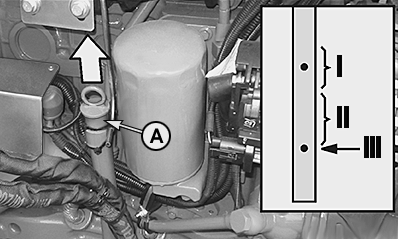

Park tractor on level ground to check engine oil level. Remove dipstick (A) located on the r.h. side of engine. Wipe clean and reinsert dipstick fully. Remove dipstick once again and check oil level.

I = Normal use level

II = Restore level as soon as possible

III = Restore level before restarting engine

Do not start engine if oil level is below minimum level allowed. In this case, top up using suitable oil until reaching correct level. See Section 80, Fuel, Lubricants, Hydraulic Oil and Coolant.

OULXBER,000251B-19-20141030
