Check Engine Oil Level (F5C Engine)

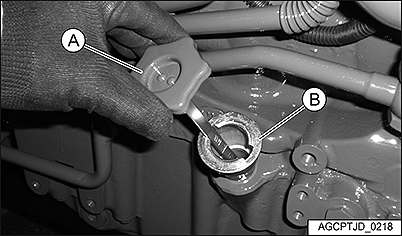

Oil level should be between two marks on dipstick (A). DO NOT operate engine when oil level is below low mark on dipstick.

AGCPTJD0218-UN-02NOV15

Park tractor on level ground to check engine oil level. Remove dipstick (A), wipe clean and reinsert it fully. Remove and check oil level.

Safe operating range is between the two marks on dipstick (A). Do not operate engine when oil level is below lower mark on dipstick (A). In this case add specified oil through filler neck (B). See Section 80, Fuel, Lubricants, Hydraulic Oil and Coolant.
