Check Coolant Level

CAUTION: Only remove radiator cap when engine is cold. Slowly loosen cap to first stop to relieve pressure before removing completely.


Version with sight glass

TS281
TS281-UN-15APR13

AGCPTJD0672
AGCPTJD0672-UN-01OCT14

Check coolant level in radiator through the sight glass (A). Coolant level with a cold engine should be between the two marks on the decal (B). Add coolant if necessary.


Version without sight glass

AGCPTJD0374
AGCPTJD0374-UN-11JUL13

AGCPTJD0024
AGCPTJD0024-UN-04JUN13

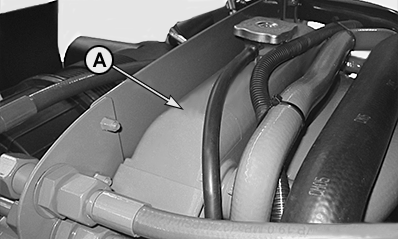

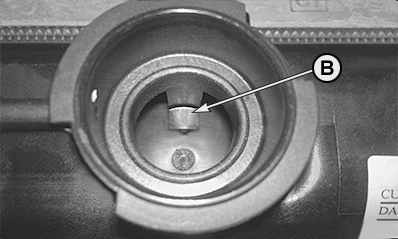

Check coolant level in expansion tank (A). If engine is cold and level is below mark (B), add coolant to bring level to mark (B).
