Change Engine Oil Filter

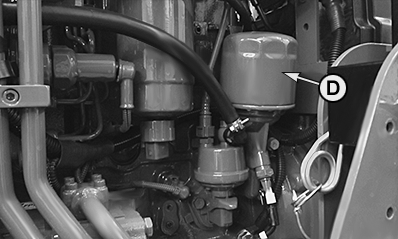

AGCPTJD0549
AGCPTJD0549-UN-16DEC13

F5C Engine

AGCPTJD0218
AGCPTJD0218-UN-02NOV15

F5C Engine

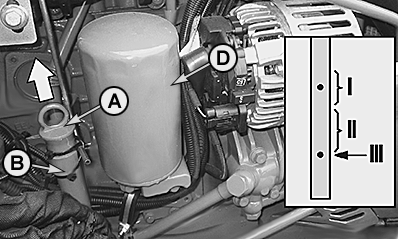

AGCPTJD0697
AGCPTJD0697-UN-29OCT14

NEF Engine

A - Dipstick

B - Filler neck

D - Engine oil filter

IMPORTANT: Change engine oil every 500 hours, if John Deere Premium oil is used and diesel fuel has a sulfur content of less than 0.10% (1000 ppm).

Stop engine and remove ignition-key.

  1. Open hood and remove engine oil filter (D).

  2. Apply a film of oil on the gasket prior installing the new filter. Hand tighten the oil filter plus 1/2 turn.

  3. Close hood, run engine for short time and check for leaks at filter base..

  4. Stop engine, remove dipstick (A), wipe clean and reinsert it fully. Remove dipstick once again and check oil level.

  5. On F5C engines: The oil should be up the XXX mark on the dipstick (A). If necessary, top up with oil.

    On NEF engines: I = normal oil level, II = restore level as soon as possible, III = restore level before restarting engine.
