Replace Transmission/Hydraulic Oil Filter

1.

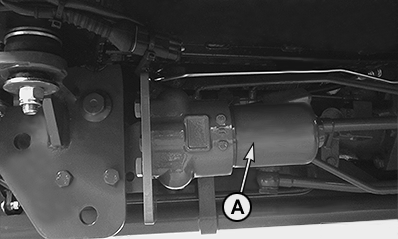

   AGCPTJD0422-UN-15JUL13

   5GL without electro-hydraulic power reverser

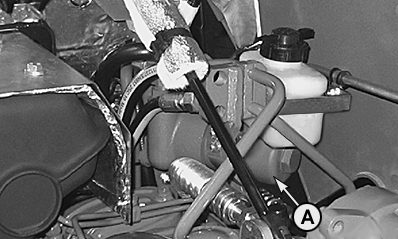

   AGCPTJD0644-UN-29OCT14

   5GV, 5GN & 5GF without electro-hydraulic power reverser

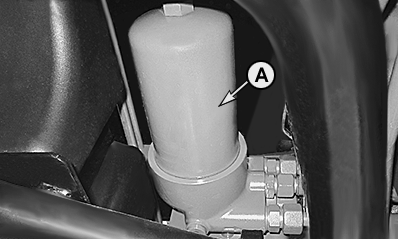

   AGCPTJD0638-UN-29OCT14

   5GV, 5GN & 5GF with 24/12 transmission

   Remove filter (A). Apply a film of oil to new gasket and install new filter. Hand tighten plus 1/2 turn.

---




2. Run engine several seconds and check transmission/hydraulic oil level.

3. Add transmission oil if required (see Section 80, Fuel, Lubricants, Hydraulic Oil and Coolant).
