Change Oil and Replace Oil Filter of Front PTO

1.
   AGCPTJD0704-UN-30OCT14


   AGCPTJD0705-UN-30OCT14


   AGCPTJD0706-UN-30OCT14

   Place the tractor on a flat horizontal surface.

---




2. Apply the parking brake and stop the engine.

3. Remove key from key switch.

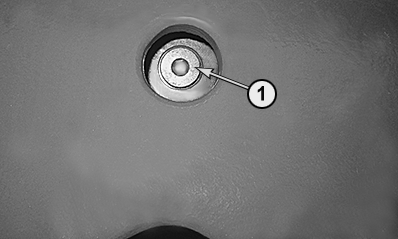

4. Place a suitable recipient under the drain plug (1).

5. Unscrew the cap (4).

6. Once all the oil has drained out, reinstall the plug (1).

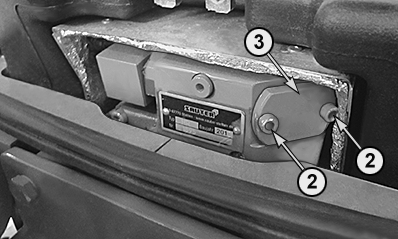

7. Unscrew bolts (2) and remove cover (3). Trap oil.

8. Pull out and replace the oil filter.

9. Replace the O-ring .

10. Reinstall assembly by performing the removal operations in reverse order.

11. Fill fresh oil into front PTO by cap (4) to the lip of the aperture

12. Start the engine and let it run for a few minutes.

13. Stop the engine.

14. Check the oil level: It should be up to the lip of the cap (4) and top up if necessary.

Oil Type	Oil Quantity	Ordering Information
John Deere HD SynTran	0.75 Liter (0.2 U.S.gal.) Always check level as explained in step 14.	TY26391 (22,7 Liter; 6 U.S.gal.) TY26392 (3,8 Liter; 1 U.S.gal.)
