Clean Cab Air Filters

AGCPTJD0702-UN-30OCT14

PULX001274-UN-03SEP08

A - Screws

B - Cover

C - Lever

D - Filter element

CAUTION: The cab air filters do not protect against inhaling harmful pesticides. If pesticide use instructions require respiratory protection, wear an appropriate respirator inside the cab.

Every time the engine primary filter element is serviced, also remove the cab air filters (one on each side) and the recirculated air filter, and clean them with compressed air directed from the clean side.

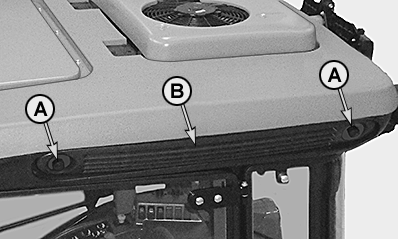

Remove screws (A) and filter cover (B).

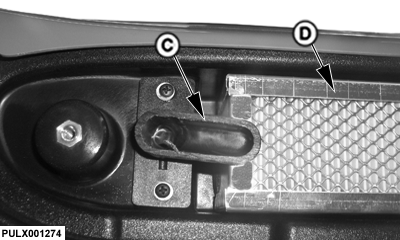

On both ends of the filter, turn lever (C) upwards.

Remove cab air filter element (D).

Replace cab air filters with engine primary filter element (the latest after 1500 hours of operation or 2 years).
