Check Front PTO Oil Level

AGCPTJD0706
AGCPTJD0706-UN-30OCT14

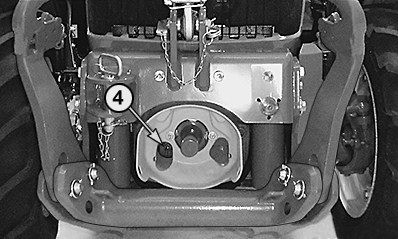

  1. Unscrew the cap (4).

  2. Check the oil level: it should be up to the lip of the aperture and top up if necessary.

  3. Retighten the cap (4).

Oil Type

Oil Quantity

Ordering Information

John Deere HD SynTran

0.75 Liter (0.2 U.S.gal.)

Always check level as explained in step 14.

TY26391 (22,7 Liter; 6 U.S.gal.) TY26392 (3,8 Liter; 1 U.S.gal.)

OULXBER,0002525-19-20141030
