Fuses and Relays
General
IMPORTANT: To prevent damage to the electrical system, NEVER use a fuse with a rating higher than the one already installed. If original size fuse will not carry electrical load and continues to blow, have the electrical system checked by your John Deere dealer.
AGCPTJD0555-UN-16DEC13

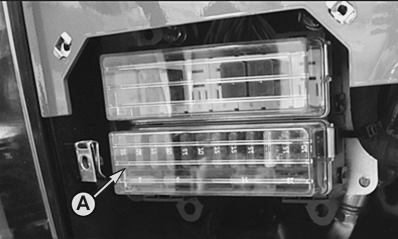

The main fuse box (A) is located inside the l.h. panel of the dash panel.
Tractors with mechanical transmissions

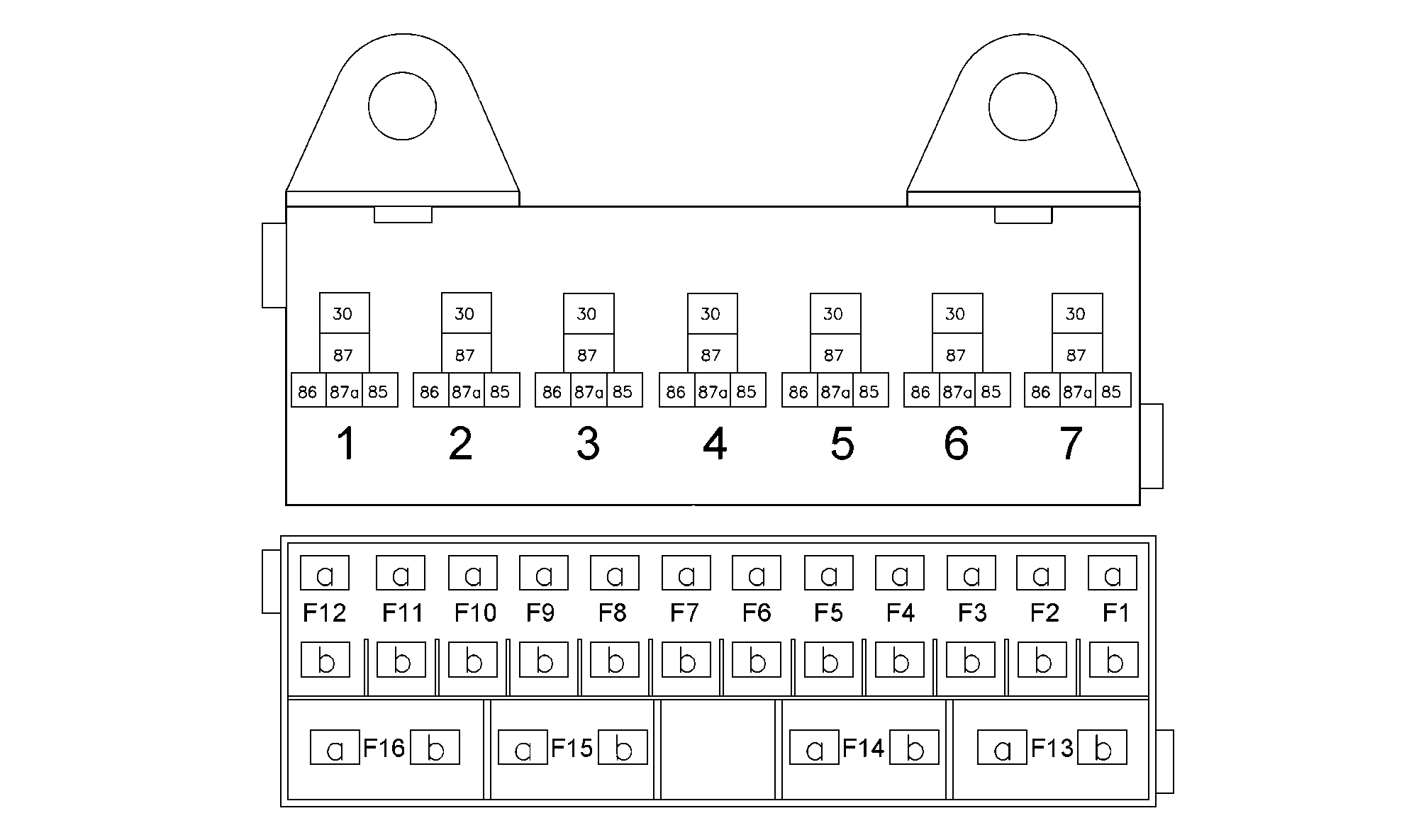

AGCPTJD0329-UN-27JUN13
|
RELAYS (Tractors with Mechanical Transmissions) |
|
|
Relay |
Description |
|
K1 |
High splitter |
|
K2 |
Low splitter |
|
K3 |
Trailer brake valve (CUNA) |
|
K4 |
Not used |
|
K5 |
H4 low beam |
|
K6 |
H4 high beam |
|
K7 |
Not used |
|
Fuses (Tractors with Mechanical Transmissions) |
||
|---|---|---|
|
Position |
Type |
Function |
|
F1 |
10 A |
Fuel shut-off solenoid valve |
|
F2 |
15 A |
Three-Point hitch leveling system (implement alignment valve assembly), seat air suspension, additional fuel tank |
|
F3 |
25 A |
3-terminal power outlet socket (+15) |
|
F4 |
15 A |
3-terminal power outlet socket (+30), cigarette lighter |
|
F5 |
15 A |
Beacon light, worklight, open operator's station work light |
|
F6 |
15 A |
MFWD valve, MFWD switch, brake pedal switches, brake lights |
|
F7 |
10 A |
Instrument unit +15, radio +15, differential lock valve, differential lock switch, cab connection +15 Indicator light for trailer brake, trailer brake valve, trailer brake valve relay |
|
F8 |
15 A |
Hazard +30, Turn signal lights |
|
F9 |
10 A |
PTO switches, neutral start relay (pin 86), grid heater connection +15, speed sensor |
|
F10 |
15 A |
HAZARD +15, horn, turn signal lights |
|
F11 |
10 A |
Hi-Lo relay, Hi-Lo valve and Hi-Lo switches Switches in gear lever. Turn-signal lights, hazard warning lights |
|
F12 |
7,5 A |
Dashboard +30 |
|
F13 |
15 A |
Hi Beam |
|
F14 |
15 A |
Low Beam |
|
F15 |
5 A |
Right clearance lights and tail lights |
|
F16 |
5 A |
Left clearance lights and tail lights Dashboard backlight |
Tractors with 24/24 speed transmissions
AGCPTJD0329-UN-27JUN13
|
Fuses (Tractors with 24/24 Speed Transmissions) |
||
|---|---|---|
|
Position |
Type |
Function |
|
F1 |
10 A |
Fuel shut-off solenoid valve |
|
F2 |
15 A |
Three-Point hitch leveling system (implement alignment valve assembly), hydraulic valve, seat air suspension, additional fuel tank, unload valve |
|
F3 |
25 A |
3-terminal power outlet socket (+15) |
|
F4 |
15 A |
3-terminal power outlet socket (+30), cigarette lighter |
|
F5 |
15 A |
Beacon light, worklight (open operator's station) |
|
F6 |
15 A |
MFWD valve, MFWD switch, brake pedal switches, brake lights |
|
F7 |
10 A |
Instrument unit +15, radio +15, differential lock valve, differential lock switch, cab connection +15 Indicator light for trailer brake, trailer brake valve, trailer brake valve relay |
|
F8 |
15 A |
Hazard +30, turn signal lights |
|
F9 |
10 A |
PTO switches, neutral start relay (pin 86), grid heater connection +15, speed sensor |
|
F10 |
15 A |
HAZARD+15, horn, turn signal lights |
|
F11 |
10 A |
Turn-signal lights, Hazard warning lights Hi-Lo relay, Hi-Lo valve and Hi-Lo switches |
|
F12 |
7,5 A |
Dashboard +30 |
|
F13 |
15 A |
Hi Beam |
|
F14 |
15 A |
Low Beam |
|
F15 |
5 A |
Right clearance lights and tail lights |
|
F16 |
5 A |
Left clearance lights and tail lights Dashboard backlight |
|
Relays (Tractors with 24/24 Speed Transmissions) |
|
|---|---|
|
Position |
Function |
|
1 |
High splitter |
|
2 |
Low splitter |
|
3 |
Trailer brake valve (ITALY) |
|
4 |
Interlock |
|
5 |
H4 low beam |
|
6 |
H4 high beam |
|
7 |
PTO speed enabeler |

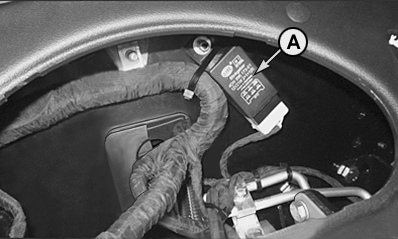

Relays under the dashboard
AGCPTJD0530-UN-16DEC13
AGCPTJD0707-UN-30OCT14
|

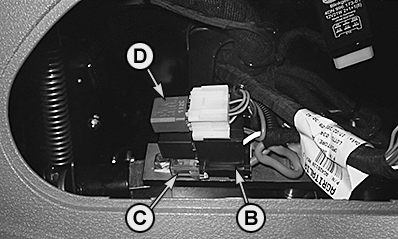

Engine fuses and relays |
||
|---|---|---|
|
Position |
Type |
Function |
|
A |
Relay |
Turn signal |
|
B |
Relay 50 A |
Starter relay |
|
C |
Fuse 50 A |
Main harness protection |
|
D |
Relay 10 A |
Additional fuel tank (if equipped) |

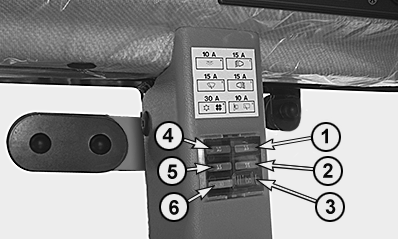

Cab fuse box
AGCPTJD0708-UN-30OCT14
Post at the right side of cab
AGCPTJD0709-UN-02NOV15

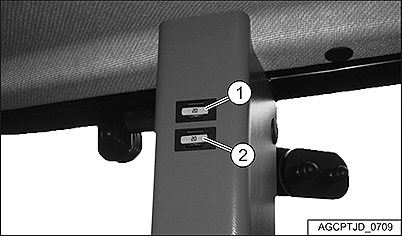

Post at the left side of cab
The cab fuses are located in the post on the right-hand side.
|
Post at the right side of cab |
||
|
Position |
Type |
Function |
|
1 |
15 A |
Front work lights |
|
2 |
15 A |
Rear work lights |
|
3 |
10 A |
Radio (+15), rear window wiper |
|
4 |
10 A |
Radio (+30), courtesy light |
|
5 |
15 A |
Windshield wiper, windscreen washer pump |
|
6 |
30 A |
Air conditioning module |
|
Post at the left side of cab |
||
|
Position |
Type |
Function |
|
1 |
20 A |
Fan motor |
|
2 |
20 A |
Fan motor |

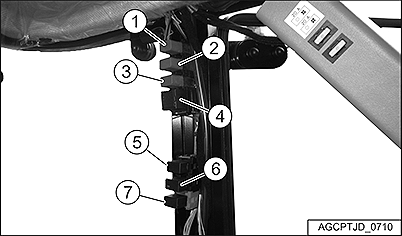

Relays in the cab
AGCPTJD0710-UN-02NOV15
|
Relays in the cab |
||
|
Position |
Type |
Function |
|
1 |
30 A |
Front working light |
|
2 |
30 A |
Rear working light |
|
3 |
20 A |
A/C clutch |
|
4 |
40 A |
Power supply |
|
5 |
20 A |
Micro relay fan (series) |
|
6 |
20 A |
Micro relay fan (parallel) |
|
7 |
15-25 A |
Micro relay fan |

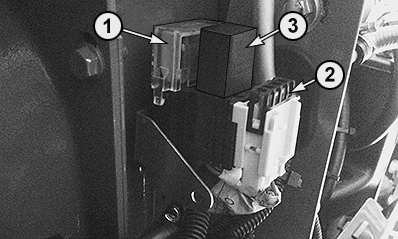

Other fuses and relays
AGCPTJD0711-UN-30OCT14
|
Fuses and relays |
||
|
Position |
Type |
Function |
|
1 |
70 A |
Main fuse for cab wiring circuit |
|
2 |
5 A |
EHS Hitch control unit |
|
3 |
relay |
EHS Hitch control unit |

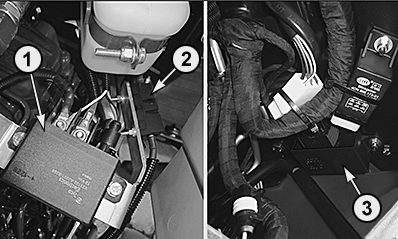

Fuses and relays for intake air heater (optional)
AGCPTJD0712-UN-30OCT14
|
Fuses and relays |
||
|
Position |
Type |
Function |
|
1 |
relay |
Intake air heater (under the bonnet) |
|
2 |
150 A |
Intake air heater (under the bonnet) |
|
3 |
relay |
Intake air heater (under the dashboard) |
|
