Dimensions - 5GV, 5GN, GF and 5GL with ROPS

AGCPTJD0726-UN-06NOV14

AGCPTJD0427-UN-24JUL13

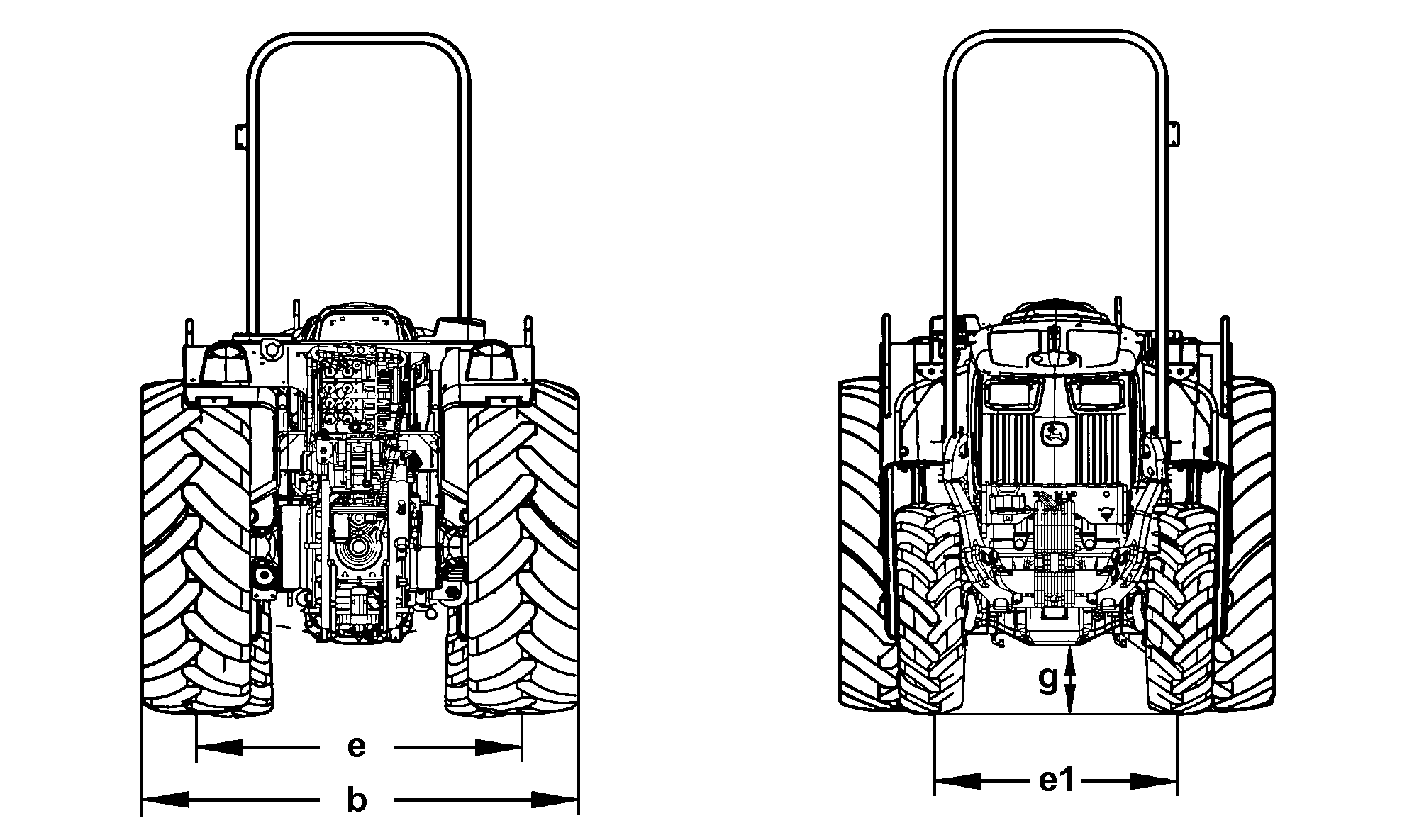

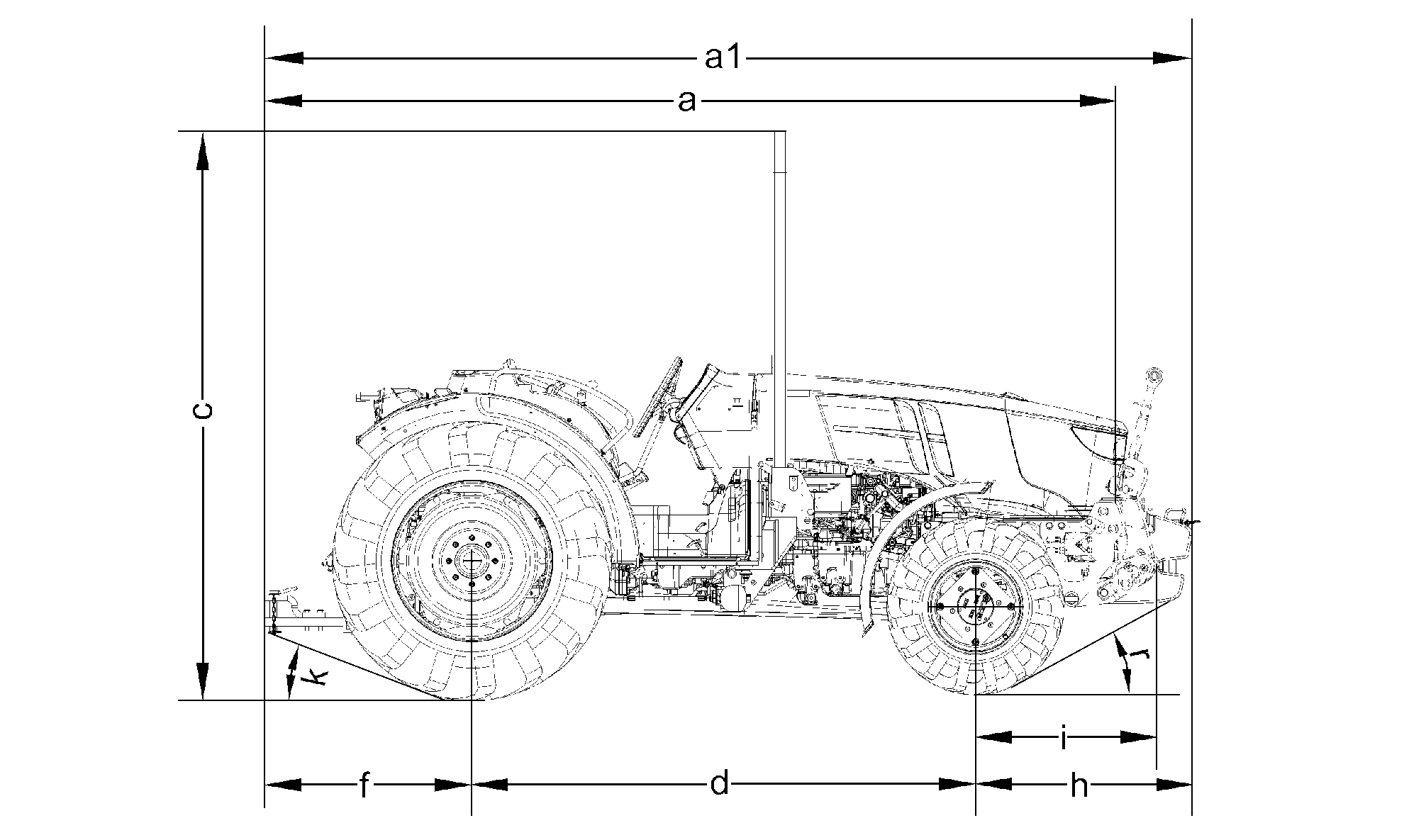

Dimensions, 5GV, 5GN and 5GF with ROPS. All dimensions in mm.		GV	GN		GF		GL
		F5C	F5C	NEF	F5C	NEF	F5C
a	2WD	3995	3995	4082	3995	4082	-
	4WD	3995	3995	4082	3995	4082	3840
a1	2WD	4319	4319	4406	4319	4406	-
	4WD	4319	4319	4406	4319	4406	4164
b max	2WD	1642	1785	1785	1958	1958	-
	4WD	1642	1785	1785	1958	1958	1829
c	2WD	2460	2469	2539	2490	2560	-
	4WD	2469	2490	2560	2490	2560	2420
d	2WD	2098	2098	2185	2098	2185	-
	4WD	2098	2098	2185	2074	2161	2074
e1	2WD	776-974	776-974	776-974	998-1382	998-1382	-
	4WD	825-1048	846-1112	846-1112	1119-1603	1119-1603	1181-1445
e	2WD	848-1279	955-1359	955-1359	984-1629	984-1629	-
	4WD	848-1279	955-1359	955-1359	984-1629	984-1629	1024-1591
f	2WD	1063	1063	1063	1063	1063	-
	4WD	1063	1063	1063	1063	1063	908
g min	2WD	292	292	292	292	292	-
	4WD	227	254	254	241	241	180
g max	2WD	292	322	322	322	322	-
	4WD	267	289	289	346	346	230
h	2WD	1163	1163	1163	1163	1163	-
	4WD	1159	1156	1156	1182	1182	1181
i	2WD	1019	1019	1019	1019	1019	-
	4WD	1016	1012	1012	1039	1039	1042
r	2WD	20°	20°	20°	20°	20°	-
	4WD	19,23°	20,48°	20,48°	20,24°	20,24°	12,71°
k	2WD	14,48°	15,64°	15,64°	14,54°	14,54°	-
	4WD	14,48°	15,64°	15,64°	14,54°	14,54°	15,38°
FRONT TYRES	2WD	6.50-16	7.50-16		7.50-16		-
	4WD	7.50-16	7.50-18		9.50 R20		280/70 R16
REAR TYRES	2WD	320/85 R28	340/85 R28		380/85 R28		-
	4WD	340/85 R28	380/85 R28		380/85 R28		380/70 R24
