Operate Transmission Shift Levers

    AGCPTJD0359
    AGCPTJD0359-UN-11JUL13

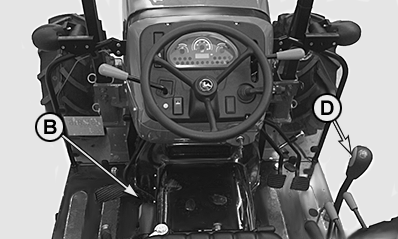

    The transmission gear shift lever (D) operates in an H-pattern.

  • Center position is neutral.
  • Move the lever from neutral to the left and forward to select the first gear.
  • Move the lever from neutral to the left and rearward to select the second gear.
  • Move the lever from neutral to the right and forward to select the third gear.
  • Move the lever from neutral to the right and rearward to select the fourth gear.

Range Shifting

    The transmission range lever (B) has three positions:

  • Forward is low range.
  • Rearward is high range.
  • To the right and forward is creeper.
