E-SCV, Diagnostic Trouble Codes

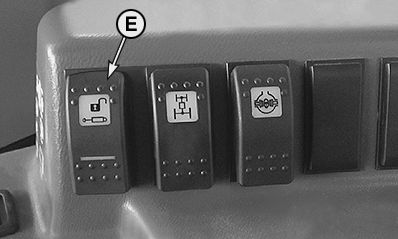

E-SCV Flash Codes of LED at Safety Stop Switch (E):

AGCPTJD0675-UN-01OCT14

In normal operating conditions the LED comes on to indicate “transport lock activated”.

The LED begins flashing if a Diagnostic Trouble Code is present. Different flashing sequences are assigned to the Diagnostic Trouble Codes, see table.

IMPORTANT: Let your John Deere™ dealer check the system if LED is flashing.

Service ADVISOR Diagnostic Trouble Code Number		1st Flash Sequence (after long pause)		2nd Flash Sequence (after short pause)	Diagnostic Trouble Code Description
TVC	53248	1		1	Potentiometer for E-SCV 4 Oil Flow Rate Fault
TVC	53249	1		2	Multi-Function Lever Fault (E-SCV Valve 4)
TVC	53250	1		4	E-SCV Valve 4 Fault
TVC	53251	2		1	Potentiometer for E-SCV 3 Oil Flow Rate Fault
TVC	53252	2		2	Multi-Function Lever Fault (E-SCV Valve 3)
TVC	53253	2		4	E-SCV Valve 3 Fault
TVC	53254	3		1	Potentiometer for E-SCV 1 Oil Flow Rate Fault
TVC	53255	3		2	E-SCV 1 Control Lever Fault
TVC	53256	3		4	E-SCV Valve 2 Fault
TVC	53257	4		1	Potentiometer for E-SCV 2 Oil Flow Rate Fault
TVC	53258	4		2	E-SCV 2 Control Lever Fault
TVC	53259	4		4	E-SCV Valve 1 Fault
TVC	53260	7		1	E-SCV Transport Lock Switch Fault
TVC	53261	7		2	Control Unit Unswitched Supply Voltage High
TVC	53262	7		3	Control Unit Unswitched Supply Voltage Low
TVC	53263	7		4	Control Unit 5-Volt Supply Fault
TVC	53264	7		5	Safety Valve Fault
