Hitch, Diagnostic Trouble Codes

Hitch Flash Codes

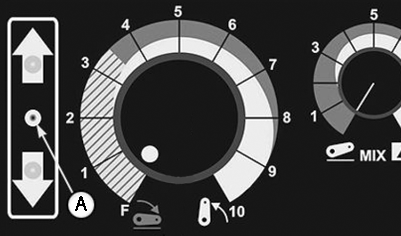

LX211148-UN-08DEC14

In normal operating conditions the LED (A) comes on to indicate “hitch stop”.

The LED (A) begins flashing if one of the listed diagnostic trouble codes are active.

IMPORTANT: Let your John Deere™ dealer check the system if LED (A) is flashing.

Service ADVISOR Diagnostic Trouble Code Number		Diagnostic Trouble Code Description
EHS	02	Draft Sensor Fault
EHS	04	Electronic Hitch Sensing Control Unit Internal Failure
EHS	08	Electronic Hitch Sensing Control Unit, Supply Voltage too Low
EHS	16	Electronic Hitch Sensing Control Unit, Supply Voltage too High
EHS	32	Lowering Solenoid Valve Fault
EHS	64	Raising Solenoid Valve Fault
