5GL Front-Wheel Tread Adjustment

Front wheel tread can be adjusted by re-positioning or reversing the rims or by reversing the wheel disks. In addition, the complete wheel can be installed on the other side of the tractor. The arrow on side wall of tire must point in the direction of forward travel. If front wheels are removed to adjust tread, tighten front wheel attaching nuts to specified torque. See “Tighten Wheel Bolts” in this Section.

IMPORTANT: Always mount nuts on rim side.

NOTE: The illustration shows the right-hand front wheel. Tread widths are measured at the lowest point of the tires.

LX205085-UN-14JAN14

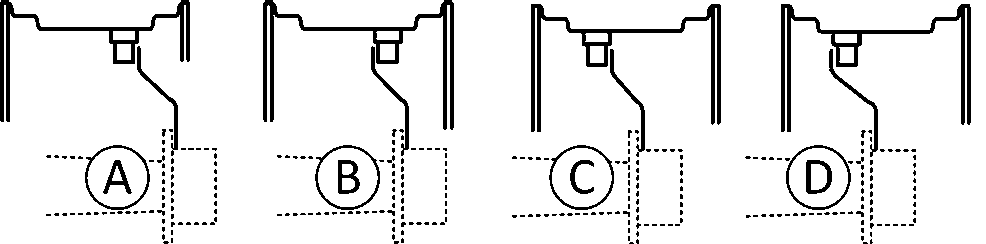

4 Pos. Adjustable Rim (Front-Wheel)

5GL Front-Wheel Tread Settings (with Front-Wheel Drive)
Front Tires	4 Pos. Adjustable Rim	Unit	Position of Rim and Wheel Disks
			A	B	C	D
260/70 R16	W8x16"	mm	1257	1333	1297	1373
		in.	49	52	51	54
280/70 R16	W8x16"	mm	1256	1332	1296	1372
		in.	49	52	51	54
280/70 R18	W9x18"	mm	1181	1257	1369	1445
		in.	47	49	54	57

LX211142-UN-26SEP14

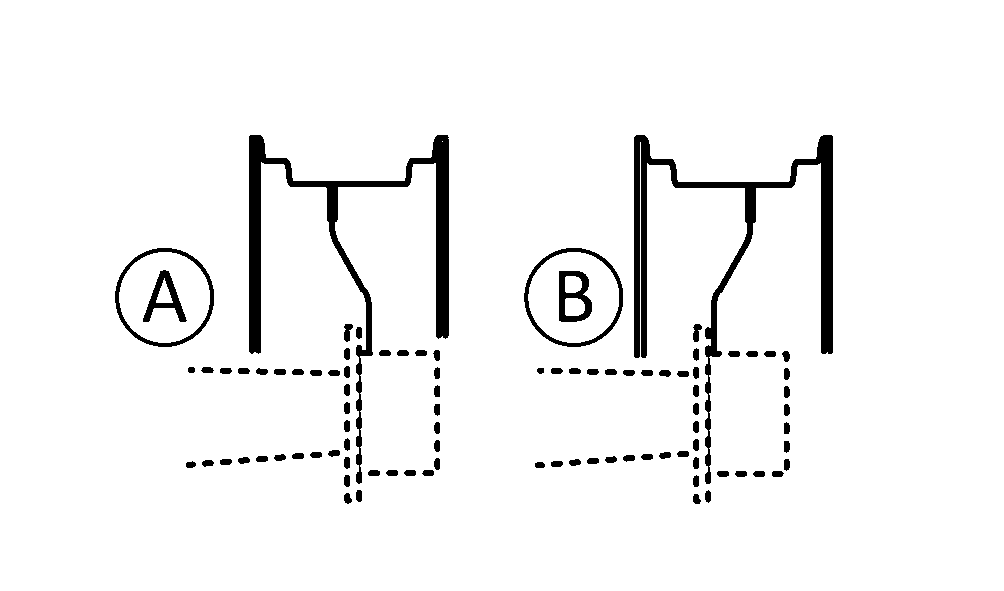

2 Pos. Rim (Front Wheel)

5GL Front-Wheel Tread Settings (with Front-Wheel Drive)
Front Tires	2 Pos. Rim	Unit	Position of Rim and Wheel Disks
			A	B
260/70 R16	W8x16"	mm	1263	1367
		in.	50	54
280/70 R16	W8x16"	mm	1262	1366
		in.	50	54
280/70 R18	W9x18"	mm	1217	1413
		in.	48	56

5GL Rear-Wheel Tread Adjustment

LX203964-UN-26AUG13

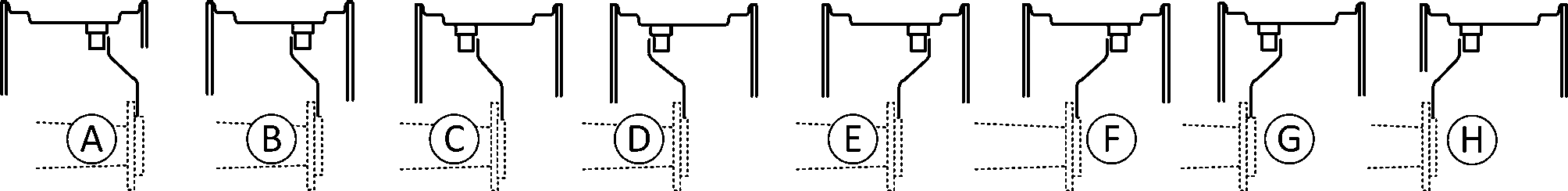

8 Pos. Adjustable Rim

5GL Rear-Wheel Tread Settings
Rear Tires	8 Pos. Adjustable Rim	Unit	Position of Rim and Wheel Disks
			A	B	C	D	E	F	G	H
380/70 R20	W11x20"	mm	x	1131	1235	1342	1156	1263	1367	1474
		in.	x	45	49	53	45	50	54	58
360/70 R24	W12x24"	mm	1027	1140	1196	1309	1195	1308	1364	1477
		in.	40	45	47	52	47	51	54	58
380/70 R24	W12x24"	mm	x	1140	1196	1309	1195	1308	1364	1477
		in.	x	45	47	52	47	51	54	58
440/65 R24	W15Lx24"	mm	x	x	x	1191	1313	1426	1478	1591
		in.	x	x	x	47	52	56	58	63

Rear wheel tread can be adjusted by re-positioning or reversing the rims or by reversing the wheel disks. In addition, the complete wheel can be installed on the other side of the tractor. The arrow on side wall of tire must point in the direction of forward travel.

IMPORTANT: Always mount nuts on rim side.

The distance between the side wall of the tire and the fender must not be less than 15 mm (0.6 in.). Distance between edge of tire and fender must not be less than 30 mm (1.18 in.).

NOTE: The illustration shows the right-hand rear wheel. Tread widths are measured at the lowest point of the tires.

After adjustment has been completed tighten wheel retaining bolts to specified torque. See Section 30, Break-In Period. If wheels are removed to adjust tread, tighten wheel retaining bolts or nuts to specified torque. See Tighten Wheel Bolts in this Section.
