5GV - Tread Adjustment

5GV Front-Wheel Tread Adjustment

Front wheel tread can be adjusted by re-positioning or reversing the rims or by reversing the wheel disks. In addition, the complete wheel can be installed on the other side of the tractor. The arrow on side wall of tire must point in the direction of forward travel. If front wheels are removed to adjust tread, tighten front wheel attaching nuts to specified torque. See “Tighten Wheel Bolts” in this Section.

IMPORTANT: Always mount nuts on rim side.

NOTE: The illustration shows the right-hand front wheel. Tread widths are measured at the lowest point of the tires.

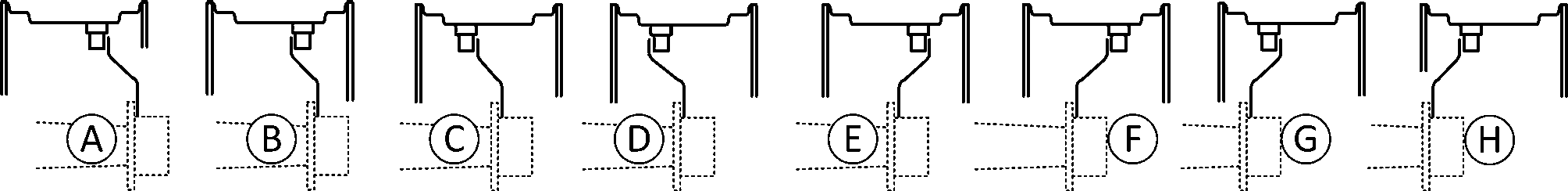

LX203965-UN-26AUG13

5GV Front-Wheel Tread Settings (with Front-Wheel Drive)
Front-Tires	Adjustable Rim	Unit	Position of Rim and Wheel Disks
			A	B	C	D	E	F	G	H
6.50-16	4.50Ex16"	mm	838	954	878	994	876	916	916	956
		in.	33	38	35	39	34	36	36	38
7.50 R16	5.50Fx16"	mm	x	940	888	964	x	x	x	x
		in.	x	37	35	38	x	x	x	x
240/70 R16	W8x16"	mm	x	x	972	1048	x	x	x	x
		in.	x	x	38	41	x	x	x	x
10.0/75-15,3	9.00x15.3"	mm	x	x	934	1010	x	x	x	x
		in.	x	x	37	40	x	x	x	x
280/70 R16	W8x16"	mm	x	x	970	1046	x	x	x	x
		in.	x	x	38	41	x	x	x	x
7.50-16	5.50Fx16"	mm	x	940	888	964	x	x	x	x
		in.	x	37	35	38	x	x	x	x
260/70 R16	W8x16"	mm	x	x	971	1047	x	x	x	x
		in.	x	x	38	41	x	x	x	x
8.25-16	5.50Fx16"	mm	x	939	887	963	x	x	x	x
		in.	x	37	35	38	x	x	x	x
260/70 R16	W8x16"	mm	x	x	971	1047	x	x	x	x
		in.	x	x	38	41	x	x	x	x
6.00-16	4.50Ex16"	mm	839	955	879	995	877	917	917	957
		in.	33	38	35	39	35	36	36	38

LX211142-UN-26SEP14

5GV Front-Wheel Tread Settings (with Front-Wheel Drive)
Front-Tires	2 Pos. Rim	Unit	Position of Rim and Wheel Disks
			A	B
10.0/75-15,3	9.00x15.3"	mm	x	1012
		in.	x	40
260/70 R16	W8x16"	mm	x	1023
		in.	x	40
280/70 R18	W9x18"	mm	x	995
		in.	x	39
6.00-16	4.50Ex16"	mm	819	1007
		in.	32	40
6.50-16	4.50Ex16"	mm	x	1006
		in.	x	40
7.50 R16	5.50Fx16"	mm	x	982
		in.	x	39
240/70 R16	W8x16"	mm	x	1024
		in.	x	40

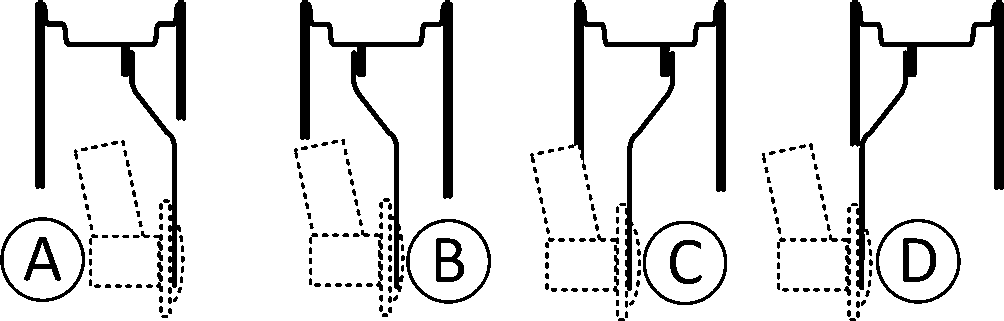

LX203966-UN-26AUG13

5GV Front-Wheel Tread Settings (without Front-Wheel Drive)
Front-Tires	Rim	Unit	Position of Rim and Wheel Disks 2WD
			A	B	C	D
6.00-16	4.00Ex16"	mm	776	x	974	x
		in.	31	x	38	x
6.50-16	5.50Fx16"	mm	809	885	869	945
		in.	32	35	34	37

5GV Rear-Wheel Tread Adjustment

LX203964-UN-26AUG13

8 Pos. Adjustable Rim

5GV Rear-Wheel Tread Settings
Rear-Tires	8 Pos. Adjustable Rim	Unit	Position of Rim and Wheel Disks
			A	B	C	D	E	F	G	H
280/85 R28	W10x28"	mm	x	x	x	879	923	1034	1168	1279
		in.	x	x	x	35	36	41	46	50
320/85 R28	W10x28"	mm	x	x	x	879	923	1034	1168	1279
		in.	x	x	x	35	36	41	46	50
250/85 R28	W8x28"	mm	x	783	x	826	974	1083	1017	1126
		in.	x	31	x	33	38	43	40	44
360/70 R24	W10x24"	mm	x	x	x	961	x	956	1016	1129
		in.	x	x	x	38	x	38	40	44
340/85 R28	W12x28"	mm	x	x	x	x	927	1038	1164	1275
		in.	x	x	x	x	36	41	46	50
340/85 R24	W12x24"	mm	x	x	x	959	x	958	1014	1127
		in.	x	x	x	38	x	38	40	44
320/85 R24	W10x24"	mm	x	x	848	961	x	956	1016	1129
		in.	x	x	33	38	x	38	40	44
360/70 R28	W12x28"	mm	x	x	x	875	927	1038	1164	1275
		in.	x	x	x	34	36	41	46	50
9.5 R28	W8x28"	mm	x	756	x	853	947	1056	1044	1153
		in.	x	30	x	34	37	42	41	45

Rear wheel tread can be adjusted by re-positioning or reversing the rims or by reversing the wheel disks. In addition, the complete wheel can be installed on the other side of the tractor. The arrow on side wall of tire must point in the direction of forward travel.

IMPORTANT: Always mount nuts on rim side.

The distance between the side wall of the tire and the fender must not be less than 15 mm (0.6 in.). Distance between edge of tire and fender must not be less than 30 mm (1.18 in.).

NOTE: The illustration shows the right-hand rear wheel. Tread widths are measured at the lowest point of the tires.

After adjustment has been completed tighten wheel retaining bolts to specified torque. See Section 30, Break-In Period. If wheels are removed to adjust tread, tighten wheel retaining bolts or nuts to specified torque. See Tighten Wheel Bolts in this Section.
