Adjust Hitch Control Lever Friction
IMPORTANT: Ensure the engine is not running and the hitch is
in lowered position.

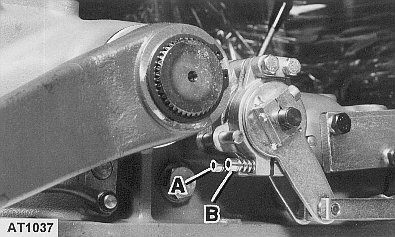

AT1037-UN-27NOV96
If hitch position control lever or draft control lever do
not stay in set position, increase relevant lever friction by tightening
draft control lever screw (B) and/or position control lever screw
(A) until the desired friction is obtained.
|
|
SS40167,000004D-19-20090122
|
|
