Multi-Function Lever (Electrical)

LX1045797-UN-22DEC10

LX1046217-UN-22JUN11

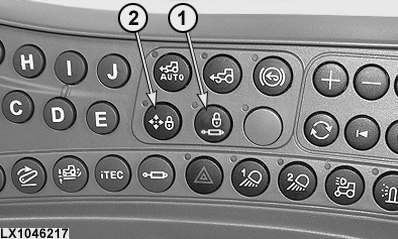

1 - Button for Transport Lock, SCVs I to IV

2 - Button for Transport Lock, SCVs XI to XIII (Multi-Function Lever)

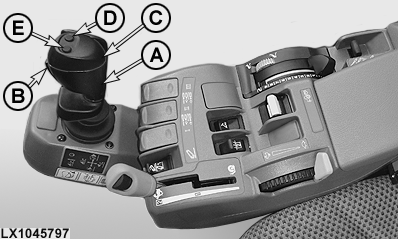

A - Multi-Function Lever

B - Rocker Switch, 3rd Function

C - Interlock Switch Actuator

D - Switch, 4th Function

E - Switch, 5th Function

IMPORTANT: Before operating a front loader, make sure that none of the detent positions have programmed time limits. For this, front-loader operation must be selected. See Additional Functions for Electronic Selective Control Valves in this Section.

IMPORTANT: The multi-function lever and the SCVs must be locked when the tractor is driven on public roads.

Multi-function lever (A) permits two SCVs to be operated at the same time. By means of rocker switch (B) an additional SCV can be operated (3rd function).

Switches (D) and (E) allow other functions.

Interlock switch actuator (C) prevents accidental actuation of the multi-function lever. The lever can operate only when the actuator is open (the operator's hand must hold it open). If the loader does not respond after the hand has been placed in the interlock switch actuator, it is possible that the lever was not in the center detent position when the actuator was opened. Move the lever back to the center detent position to activate the system.

If the lever is held in neutral position for longer than 10 minutes, the hydraulic functions are locked out. To overcome this lock-out, take your hand out of the actuator and re-insert hand. In case of malfunctions (e.g. part of system not working or operating error) the system can also be reactivated completely or partly by the procedure above.

Pulling lever (A) back raises the front loader. Pushing the lever forward until resistance is reached lowers the front loader. If the lever is pushed forward beyond the resistance, it engages in a detent and the front loader is in its float position.

Moving the lever to the left makes the loader bucket tip up. Moving the lever to the right until resistance is reached makes the loader bucket dump.

If the lever is moved to the right beyond the resistance twice in quick succession and held there, the loader bucket will vibrate.

NOTE: In cold weather, there may be brief periods when the loader does not operate. If temperature drops below 0°C (32°F), the stepper motors of the telescopic arm/bucket/grab valves operate more slowly. At temperatures below -25°C (-13°F), they stop working altogether. Operate several front loader functions to warm up the system.

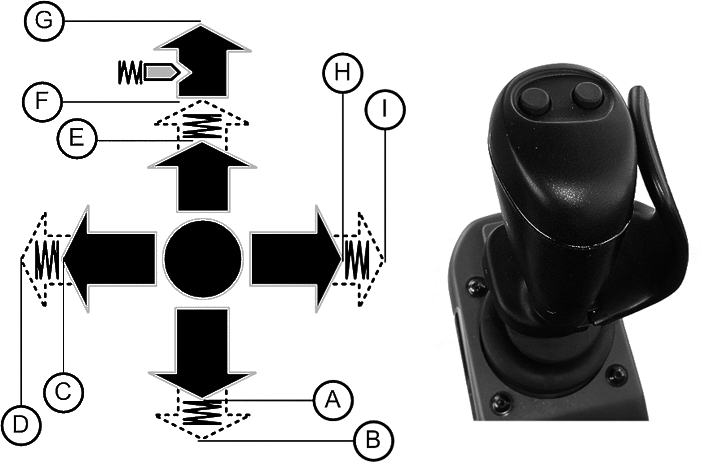

Multi-function lever functions

LX1054684-UN-08MAY12

IMPORTANT: The return-to-position function can be stopped by moving the multi-function lever briefly in the opposite direction. Example: Stop the boom while it is moving downward = Move the multi-function lever to the rear (A).

A	Pull the multi-function lever back until the boom is raised to the desired height. Do not move the lever beyond the point of resistance.
B *	Pull the multi-function lever back until it is beyond the point of perceptible resistance, then release it. This initiates the return-to-position function for the top position. The boom stops automatically at the preset top position.
C	Move the multi-function lever to the left until the bucket reaches the desired top position. Do not move the lever beyond the point of resistance.
D *	Move the multi-function lever to the left until it is beyond the point of perceptible resistance, then release it. This initiates the return-to-position function for the top position. The bucket stops automatically at the preset position.
E	Push the multi-function lever forward until the boom is lowered to the desired height. Do not move the lever beyond the point of resistance.
F *	Push the multi-function lever forward until it is beyond the point of perceptible resistance, then release it. This initiates the return-to-position function for the bottom position. The boom stops automatically at the preset bottom position.
G	Push the multi-function lever all the way forward and engage in detent to activate the float position. The lever remains in the detent until it is pulled back by hand.
H	Move the multi-function lever to the right until the bucket reaches the desired bottom position. Do not move the lever beyond the point of resistance.
I	Move the multi-function lever to the right until it is beyond the point of perceptible resistance, then release it. This initiates the return-to-position function for the bottom position. The bucket stops automatically at the preset position. Move the multi-function lever to the right twice in brief succession beyond the point of resistance and hold it there. This activates the bucket shake function.
*	Only if used with a front loader equipped with return-to-position function.
