Rear Wheel Tread Adjustment with Rims for 8 Positions - Flanged Axle (Tractors 6170R to 6210R)

LX1053404-UN-12MAR12

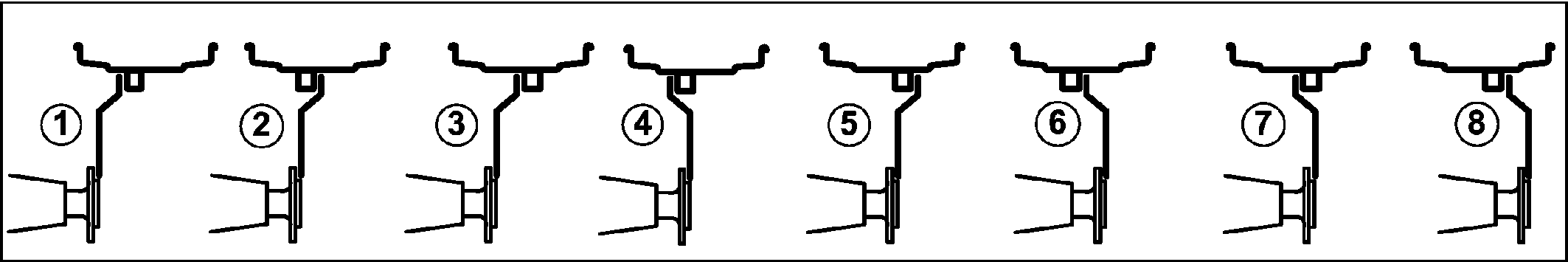

	Tread width setting on delivery	Tread width setting (rear wheels) Arrangement of rim and wheel disk
Tires:		1	2	3	4	5	6	7	8
520/85R42	1948 mm	2208 mm*	2094 mm*	1980 mm	1948 mm	1866 mm	1834 mm	1720 mm	— **
	(76.69 in.)	(86.93 in.)*	(82.44 in.)*	(77.95 in.)	(76.69 in.)	(73.46 in.)	(72.20 in.)	(67.72 in.)
520/85R46	1944 mm	2190 mm*	2130 mm*	1944 mm	1930 mm	1884 mm	1870 mm	1684 mm	1624 mm
	(76.54 in.)	(86.22 in.)*	(83.86 in.)*	(76.54 in.)	(75.98 in.)	(74.17 in.)	(73.62 in.)	(66.30 in.)	(63.94 in.)
580/70R42	1948 mm	2208 mm*	2094 mm*	1980 mm*	1948 mm	1866 mm	1834 mm	1720 mm	— **
	(76.69 in.)	(86.93 in.)*	(82.44 in.)*	(77.95 in.)*	(76.69 in.)	(73.46 in.)	(72.20 in.)	(67.72 in.)
620/70R42	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm	1812 mm	1742 mm	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)	(71.34 in.)	(68.58 in.)
650/65R42	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm*	1812 mm	— **	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)*	(71.34 in.)
650/75R38	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm*	1812 mm	— **	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)*	(71.34 in.)
650/75R42	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm*	1812 mm	— **	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)*	(71.34 in.)
650/85R38	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm*	1812 mm	— **	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)*	(71.34 in.)
710/70R38	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm*	1812 mm	— **	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)*	(71.34 in.)
710/70R42	1812 mm	2186 mm*	2072 mm*	2002 mm*	1926 mm*	1888 mm*	1812 mm	— **	— **
	(71.34 in.)	(86.06 in.)*	(81.57 in.)*	(78.82 in.)*	(75.83 in.)*	(74.33 in.)*	(71.34 in.)
* Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed. ** Installation in this position is not allowed

IMPORTANT: Comply with instructions on rear-wheel tread adjustment with rims for 8 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
