Front Wheel Tread Adjustment with Rims for 16 Positions - 6150R

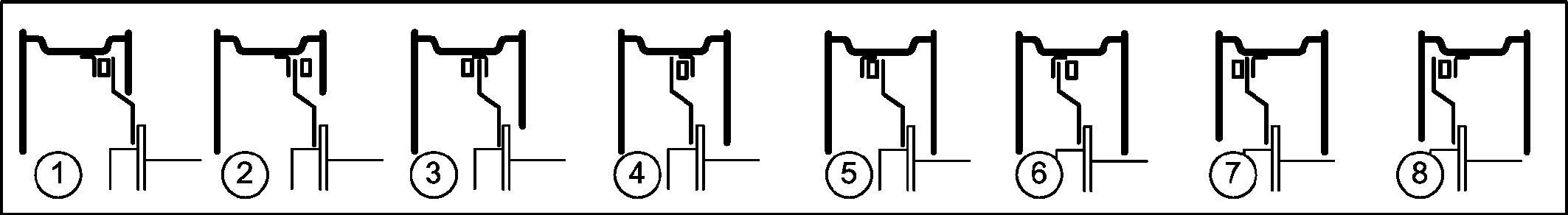

LX1053419-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 1 to 8

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel disk
Tires:		1	2	3	4	5	6	7	8
16.9R28	1816 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm	1910 mm	1880 mm	1846 mm	1816 mm
	(71.50 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
16.9R30	1910 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm	1910 mm	1880 mm	1846 mm	1816 mm
	(75.20 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
420/85R28	1816 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm	1910 mm	1880 mm	1846 mm	1816 mm
	(71.50 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
420/85R30	1910 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm	1910 mm	1880 mm	1846 mm	1816 mm
	(75.20 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
480/70R28	1816 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm**	1910 mm	1880 mm	1846 mm	1816 mm
	(71.50 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)**	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
480/70R30	1910 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm**	1910 mm	1880 mm	1846 mm	1816 mm
	(75.20 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)**	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
540/65R28	1816 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm**	2020 mm** 1910 mm	1880 mm	1846 mm	1816 mm
	(71.50 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)**	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
540/65R30	1910 mm	2114 mm**	2084 mm**	2050 mm**	2020 mm**	1910 mm	1880 mm	1846 mm	1816 mm
	(75.20 in.)	(83.23 in.)**	(82.05 in.)**	(80.71 in.)**	(79.53 in.)**	(75.20 in.)	(74.02 in.)	(72.68 in.)	(71.50 in.)
270/95R38	1816 mm	2120 mm	2090 mm	2050 mm	2020 mm	1916 mm	1886 mm	1846 mm	1816 mm
	(71.50 in.)	(83.46 in.)	(82.28 in.)	(80.71 in.)	(79.53 in.)	(75.43 in.)	(74.25 in.)	(72.68 in.)	(71.50 in.)
* With AL180127 steering stop only ** Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed.

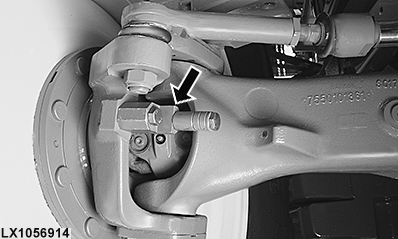

LX1056914-UN-27JUN13

* With AL180127 steering stop only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).

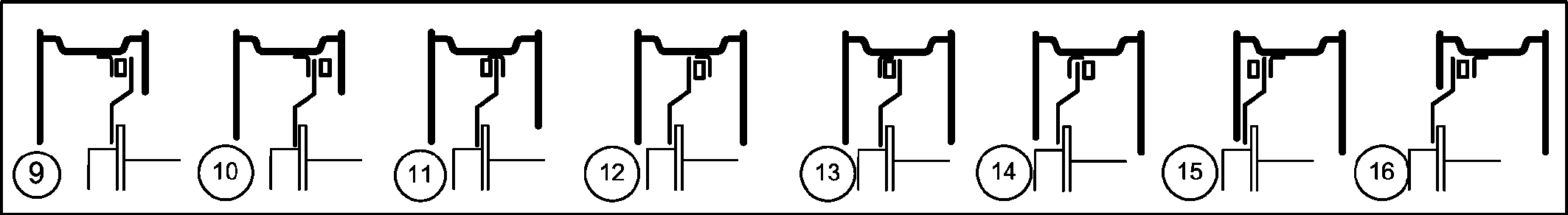

LX1053420-UN-16MAR12

Front-Wheel Tread Adjustment with Rims for 16 Positions / Positions 9 to 16

	Tread width setting on delivery	Tread width setting (front wheels) Arrangement of rim and wheel disk
Tires:		9	10	11	12	13	14	15	16
16.9R28	1816 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
16.9R30	1910 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(75.20 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
420/85R28	1816 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
420/85R30	1910 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(75.20 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
480/70R28	1816 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
480/70R30	1910 mm	1714 mm	1684 mm	1650 mm	1620 mm	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(75.20 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)	(63.78 in.)	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
540/65R28	1816 mm	1714 mm	1684 mm	1650 mm*	1620 mm*	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(71.50 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)*	(63.78 in.)*	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
540/65R30	1910 mm	1714 mm	1684 mm	1650 mm*	1620 mm*	1510 mm*	1480 mm*	1446 mm*	1416 mm*
	(75.20 in.)	(67.48 in.)	(66.30 in.)	(64.96 in.)*	(63.78 in.)*	(59.45 in.)*	(58.27 in.)*	(56.93 in.)*	(55.75 in.)*
270/95R38	1816 mm	1720 mm	1690 mm	1650 mm	1620 mm	1516 mm	1486 mm	1446 mm	1416 mm
	(71.50 in.)	(67.72 in.)	(66.54 in.)	(64.96 in.)	(63.78 in.)	(59.68 in.)	(58.50 in.)	(56.93 in.)	(55.75 in.)
* With AL180127 steering stop only ** Total vehicle width larger than 2.55 m; the regional road traffic licensing regulations have to be observed.

LX1056914-UN-27JUN13

* With AL180127 steering stop only

IMPORTANT: Comply with instructions on front-wheel tread adjustment with rims for 16 positions.

NOTE: In certain countries, overall vehicle width for driving on public roads must not exceed 2.55 m (100 in.).
