Sockets for Implement Power Supply

LX1057750
LX1057750-UN-10JUL12

LX1057751
LX1057751-UN-10JUL12

LX1057752
LX1057752-UN-10JUL12

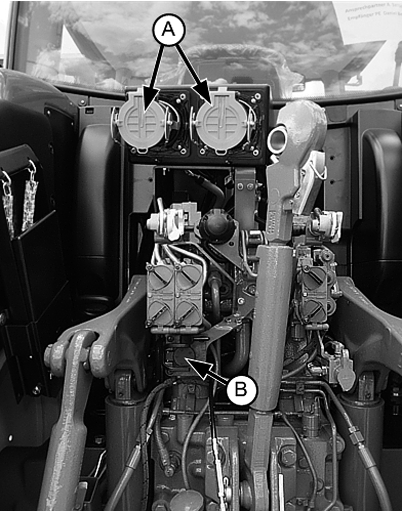

A - Sockets for Implement Power Supply

B - ISOBUS Socket for Data Exchange between Tractor and Implement

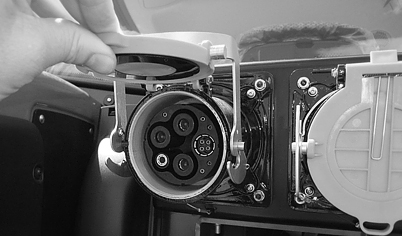

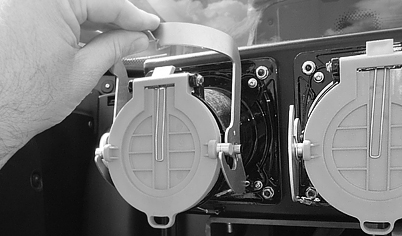

Sockets (A) for implement power supply are located at the rear of the tractor. To make a connection, unlock the cap, open it and insert the connector. Then lock the connector with the lock.

IMPORTANT: When no connector is inserted, make sure that the cap is closed and locked properly. Use suitable implements and appropriate connectors. Keep connectors and sockets dry and clean. When removing the connector, do NOT pull on the lead.

CAUTION:

  • Always get a John Deere™ dealer to carry out repair work on the power generation system. Independently carried out repairs are NOT authorized.
  • The sockets are intended solely for the purpose of supplying power to implements that have been approved. Any other use is forbidden. Improper use may result in injury or death caused by high voltages.
  • Only undamaged, safe equipment and leads are authorized for use. Comply with the implement operator's manual. If in doubt, contact the manufacturer and obtain information on how to operate the implement safely.
  • Any damage to electrical connections and their leads must be rectified by a John Deere™ dealer immediately.

OULXBER,0001C60-19-20120710
