Electrical Fuses
Fuse and relay box (PLB)

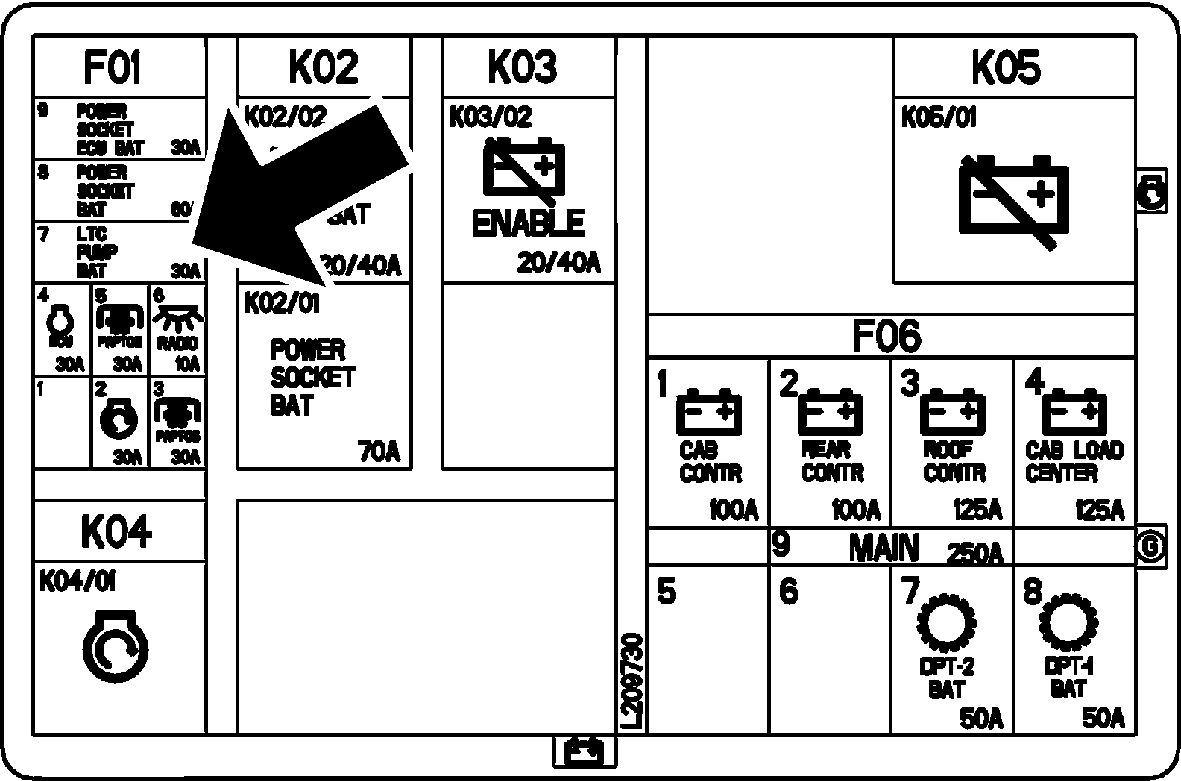

LX1054663-UN-15MAR12

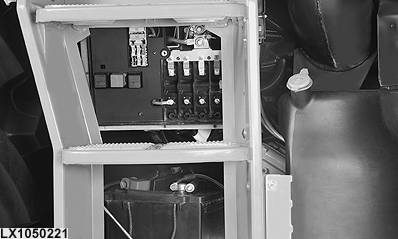

LX1050221-UN-15OCT10
Fuse and Relay Box (PLB)
|
Fuse no. |
Fuse capacity (ampere) |
Consumer |
|---|---|---|
|
F01PLB-/07 |
30 amps |
Electrical coolant pump |
F01LCS - Fuses (LCS)

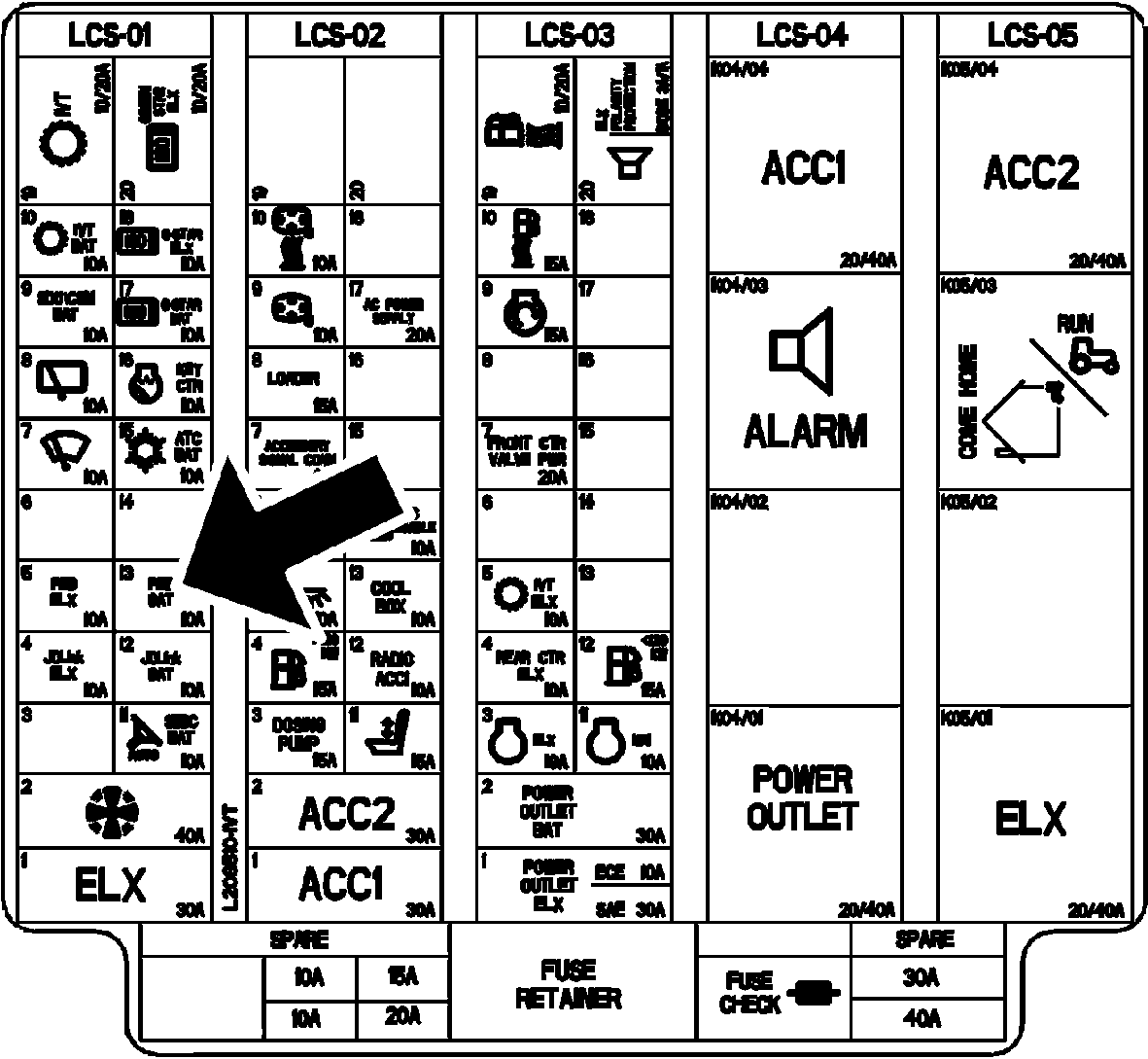

LX1054664-UN-15MAR12

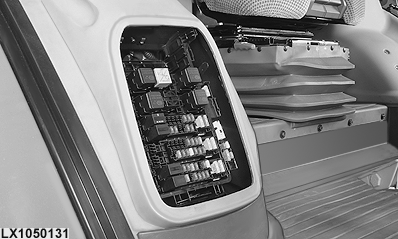

LX1050131-UN-16FEB11
Fuses and Relays (LCS)
|
Fuse no. |
Fuse capacity (ampere) |
Consumer |
|---|---|---|
|
F01LCS/04 |
10 amps |
Control unit |
|
F01LCS/12 |
10 amps |
Control unit |
|
