Check Tow Hook on Pick-Up Hitch for Wear

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

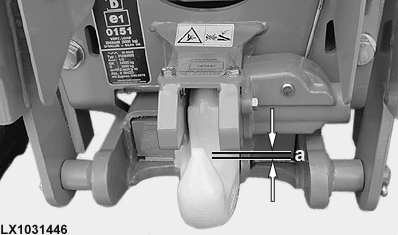

LX1031446-UN-24SEP03

Item	Measurement	Specification
Gap at catch	Maximum permissible clearance	10.0 mm 0.39 in.

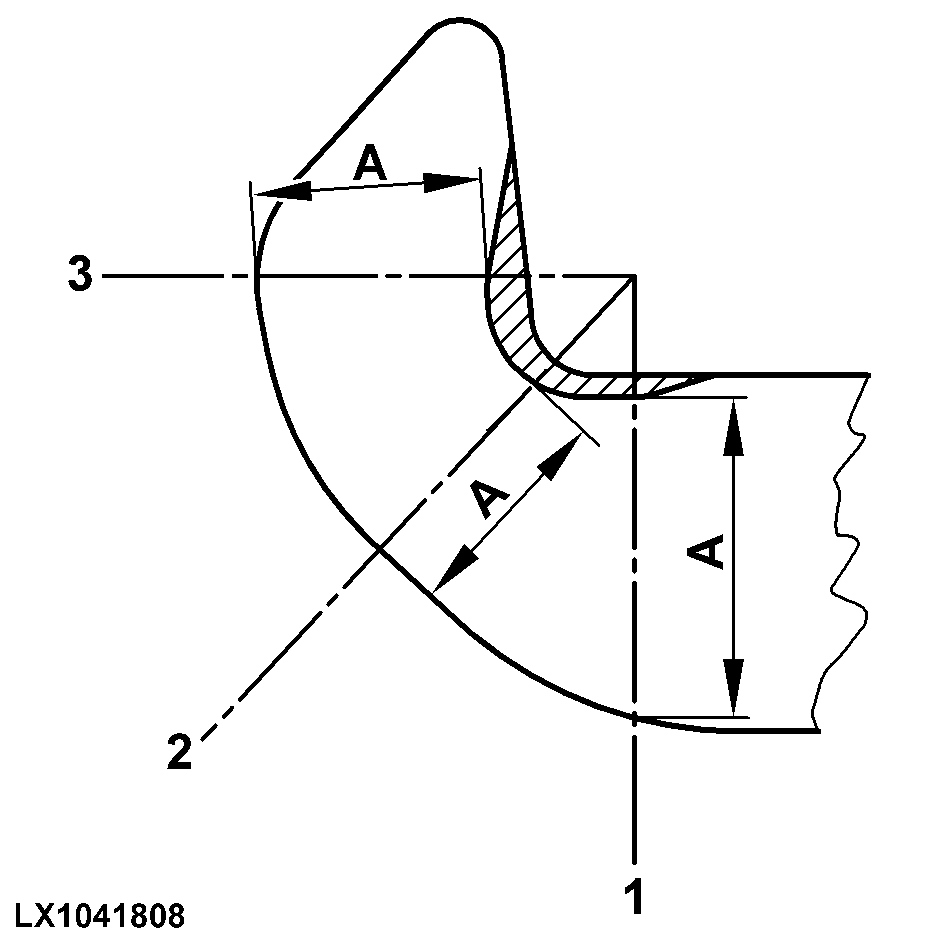

LX1041808-UN-27NOV06

If the “D” value indicated on the type plate is 65 or less, observe the following minimum dimensions (A).

Item	Measurement	Specification
Tow hook, hook diameter (D = 65 or less)	Minimum value (A), diameter 1	43.5 mm 1.71 in.

If the “D” value indicated on the type plate exceeds 65, observe the following minimum dimensions (A).

Item	Measurement	Specification
Tow hook, hook diameter (D = more than 65)	Minimum value (A), diameter 1	45.0 mm 1.77 in.
