Check the Drawbar for Wear

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

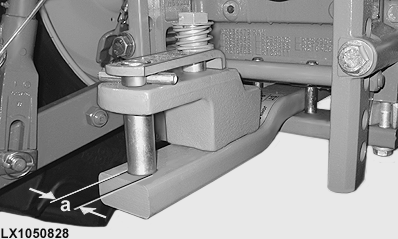

LX1050828-UN-08OCT10

Specifications for Cat. 2 hitch pins with a nominal diameter of 31.5 mm (1.24 in.):

Item	Measurement	Specification
Drawbar, Pin	Wear Limit or Minimum Diameter	29.5 mm 1.16 in.

Specifications for Cat. 3 hitch pins with a nominal diameter of 40.0 mm (1.57 in.):

Item	Measurement	Specification
Drawbar, Pin	Wear Limit or Minimum Diameter	37.5 mm 1.48 in.

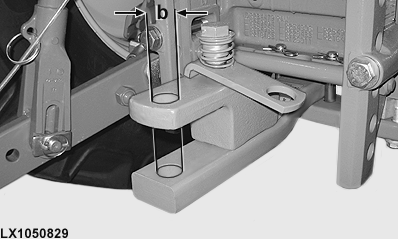

LX1050829-UN-08OCT10

Specifications for Cat. 2 receiver hole with a nominal diameter of 33.0 mm (1.30 in.):

Item	Measurement	Specification
Top and bottom receiver holes (measured in direction of travel)	Wear Limit or Maximum Permissible Diameter	35.0 mm (oval) 1.38 in. (oval)

Specifications for Cat. 3 receiver hole with a nominal diameter of 41.0 mm (1.61 in.):

Item	Measurement	Specification
Top and bottom receiver holes (measured in direction of travel)	Wear Limit or Maximum Permissible Diameter	43.0 mm (oval) 1.69 in. (oval)
