Check the Manually-Operated Hitch for Wear (Italy and Spain Only)

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

LX1031440-UN-23SEP03

LX1031441-UN-23SEP03

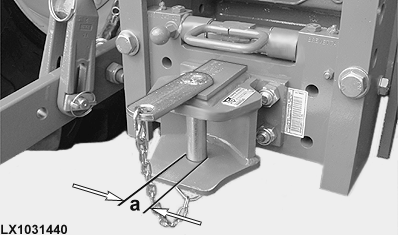

Check diameter (a) of the hitch pin.

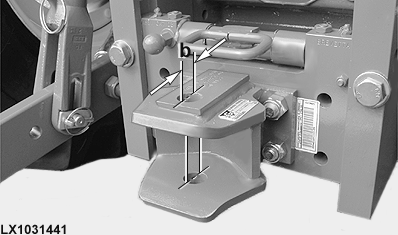

Check diameter (b) of the receiver hole.

Specifications for Cat. 2 hitch pins with a nominal diameter of 28.0 mm (1.10 in.)

Item	Measurement	Specification
Hitch Pin	Wear Limit or Minimum Diameter	26.5 mm 1.04 in.

Item	Measurement	Specification
Top and bottom receiver holes (measured in direction of travel)	Wear Limit or Maximum Permissible Diameter	31.0 mm (oval) 1.22 in. (oval)

Specifications for Cat. 3 hitch pins with a nominal diameter of 43.0 mm (1.69 in.)

Item	Measurement	Specification
Hitch Pin	Wear Limit or Minimum Diameter	41.0 mm 1.61 in.

Item	Measurement	Specification
Top and bottom receiver holes (measured in direction of travel)	Wear Limit or Maximum Permissible Diameter	46.0 mm (oval) 1.81 in. (oval)
