Lights

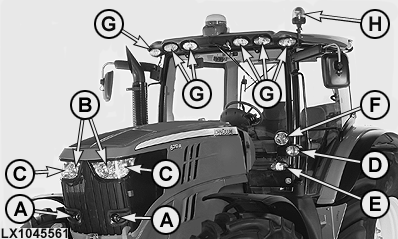

LX1045561-UN-28JUN10

LX1053360-UN-16JAN12

A	Headlights (Low Beam)
B	Headlights (High Beam)
C	Worklights1
D	Turn-Signal and Clearance (on Both Sides of Cab Frame)
E	Worklights1 (on Both Sides of Cab Frame)
F	Additional Headlights1 (Low-Beam and High-Beam) or Worklights1 (on Both Sides of Cab Frame)
G	Worklights1
H	Beacon Light1
I	Tail Lights, Brake Lights, Turn-Signal Lights (on Rear of Fenders, Both Sides)
J	Seven-Terminal Trailer Socket for Lights
K	Worklights1 (on Rear of Roof, Both Sides, Side-Facing)
L	Worklights1
M	Worklights1
N	Beacon Light1
O	License Plate Light

NOTE: H9 bulbs must NOT be used in front corner worklights (C).
