Light Switch

LX1045564-UN-28JUN10

LX1045565-UN-28JUN10

L102655-UN-15AUG94

CAUTION: It is not permitted to use worklights on public roads.

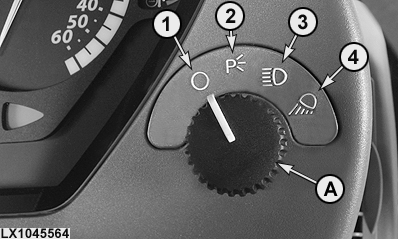

A — Light switch, positions:

• 1 — Lights switched off
• 2 — Parking lights switched on
• 3 — Headlights switched on
• 4 — Worklights switched on (combination defined by user) NOTE: When worklights are switched on, the most recently used combination of lights comes on. For more information, see Lighting System - Worklights in this Section.

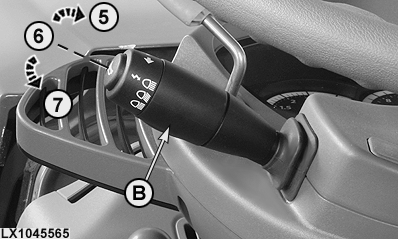

B — Switch for high/low-beam headlights

• 5 — Headlight flasher (flash-to-pass), pull switch toward steering wheel
• 6 — Low-beam, switch in center position
• 7 — High-beam, push switch away from steering wheel

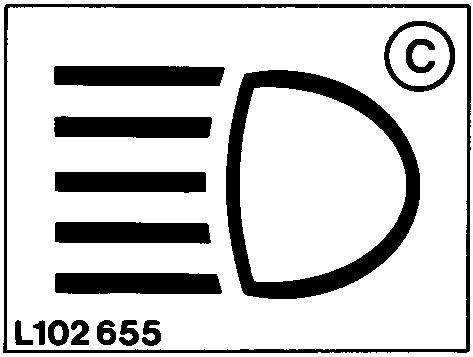

C — When high-beam headlights are switched on, the high-beam indicator light comes on.

NOTE: When the ignition is turned off, the lights are switched off automatically after approx. 5 minutes. At two minutes and one minute before this time is up, the lights flash 5 times. Lighting can be activated multiple times until the battery enters its energy-saving mode.

Each time the door is opened while the lights are on and the ignition is off, an acoustic alarm sounds for 5 seconds to remind the operator that the lights are still on.
