Switch for Turn Signal Lights and Horn

LX1045567-UN-28JUN10

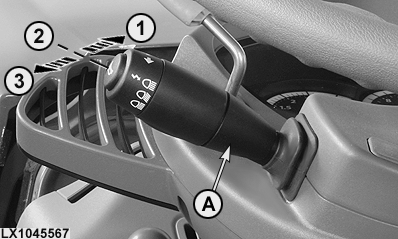

A - Switch for Turn Signal Lights and Horn

1 - Right Turn Signal

2 - Horn (Push towards Steering Column)

3 - Left Turn Signal

Turn signal without automatic return

Move switch (A) in the desired direction beyond the first point of resistance and let it engage. This activates the turn signal light. To switch the turn signal off, move switch (A) back to its neutral position (2).

Turn signal with automatic return

Move switch (A) in desired direction until perceptible resistance is felt and release it immediately (<1 second). This activates the turn signals and shuts them off automatically after some time.

When the turn signal switch is again moved in the same direction (<1 second), flashing of lights is stopped.

When the turn signal switch is moved in opposite direction and released immediately (<1 second), automatic turn-signal return for the other direction is activated.

The flashing time depends on how many trailers are pulled by the tractor.

• no trailer = 50 meters
• 1 trailer = 70 meters
• 2 trailers = 90 meters
