Lighting System - Worklights

Switch worklights on and off

LX1053231-UN-29JUN11

LX1045585-UN-23AUG10

LX1045584-UN-23AUG10

LX1045582-UN-24AUG10

LX1045583-UN-24AUG10

1 - Button for Selecting Light Combination 1

2 - Button for Selecting Light Combination 2

3 - Menu Button

4 - Light Switch, Worklights ON

5 - Switch for High/Low Beam Headlights

6 - Softkey, Main Page of Lighting System

7 - Icon for Light Combination 1 or 2

8 - Icon for High-Beam Headlights Activated

F - Softkey, Light Combination 1

G - Softkey, Light Combination 2

H - Softkey, Egress Light*

I - Softkey, Light Combination with High-Beam Headlights Activated

CAUTION: It is not permitted to use worklights on public roads (light switch at position 4).

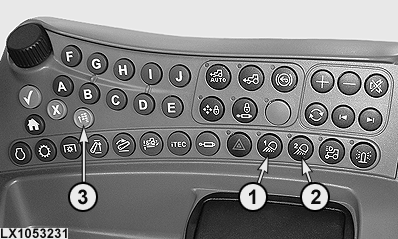

Turn the light switch to position (4) to switch the worklights on. The most recently selected combination of lights comes on again, and the relevant indicator light (1) or (2) lights up.

NOTE: Every time a combination of lights is switched on or changed, the relevant page appears for a few seconds on the CommandCenter™, indicating which combination of lights is switched on.

Pressing selection button (1) or (2) activates the relevant light combination. This combination appears briefly in the CommandCenter™ together with icon (7). Up to four different light combinations can be activated. By also switching on high-beam headlights (5), one more combination of lights is activated for each selection button and icon (8) appears on the page next to icon (7).

Select worklights

NOTE: Worklights can be selected regardless of whether lights are switched on or not.

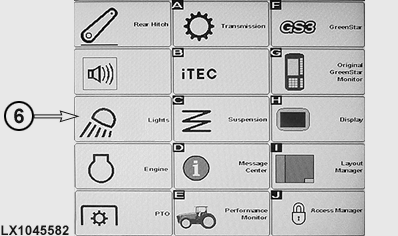

Access the main page of lighting system at button (3) and softkey (6). Content depends on how the tractor is equipped.

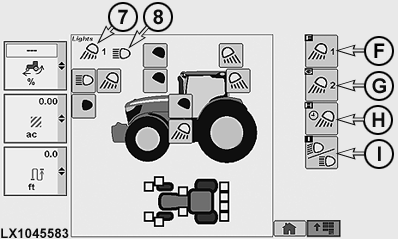

Access the various worklight selection pages at softkeys (F) and (G); the relevant icon (7) appears. Select the desired light combination on the selection page. The combination of lights is saved automatically.

When softkey (I) is actuated, icon (8) appears and - depending on selection page - a further combination of lights may be selected.

* For more information, see Lighting System - Egress Light in this Section.
