Fan and Air Louvers (Tractors without ClimaTrak System)

LX1045586-UN-06SEP10

LX1045612-UN-06SEP10

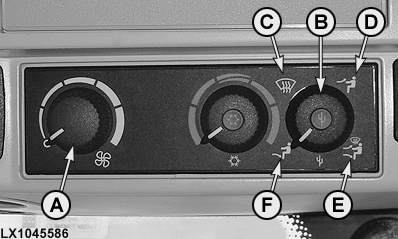

A - Fan Switch

B - Switch for Selecting Direction of Airflow

C - Airflow to Windshield

D - Airflow to Operator

E - Airflow to Windows, Operator and Footwell

F - Airflow to Footwell

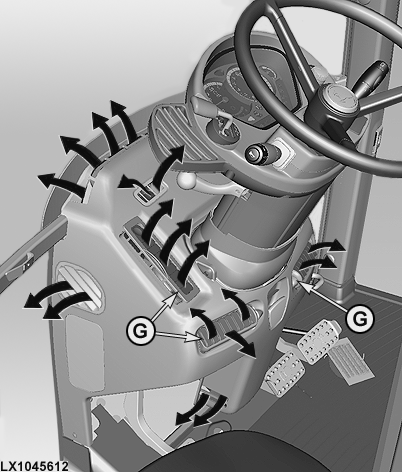

G - Louvers

Fan switch (A) controls the fan speed. The general direction of the airflow can be altered using switch (B).

De-icing or de-fogging the windshield

Set the heater to maximum heat output. Set switch (B) to symbol (C) and turn switch (A) (fan) to its maximum position.

If the airflow is to be directed at the operator, set switch (B) to symbol (D). Turn on the fan at switch (A). The direction and force of the airflow can be further adjusted at louvers (G).

If the airflow is to be directed evenly around the cab, set switch (B) to symbol (E). Turn on the fan at switch (A).

If the airflow is to be directed into the footwell, set switch (B) to symbol (F). Turn on the fan at switch (A).
