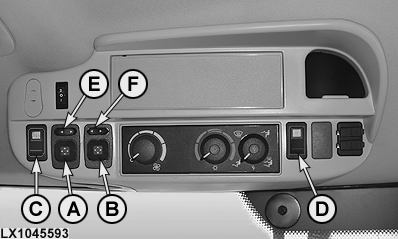

Control Switches for Rear-View Mirror and Rear-Window Heater (If Equipped)

LX1045593-UN-02SEP10

A - Mirror Adjuster

B - Mirror Arm Adjuster

C - Mirror Heater Switch

D - Rear Window Heater Switch

E - Mirror Adjuster, Left/Right

F - Mirror Arm Adjuster, Left/Right

Select left or right mirror at switch (E), then press top/bottom or right/left side of knob (A) to adjust the mirror.

Select left or right mirror at switch (F), then press right/left side of knob (B) to move the mirror arm in or out.

Switch (C) is for switching the mirror heater on and off. Switch (D) is for switching the rear-window heater on and off.

NOTE: When heater is switched on, the indicator light in the relevant switch comes on. Heating remains switched on until switch (D) is switched off or the tractor is shut off at the ignition switch. Heating remains off when the tractor is switched on again at the ignition key.
