Sockets

LX1045607-UN-06SEP10

LX1045611-UN-06SEP10

LX1045608-UN-06SEP10

LX1045609-UN-06SEP10

LX1045613-UN-07SEP10

LX1045620-UN-13SEP10

12-volt Socket without Cigarette Lighter

LX1045621-UN-13SEP10

12-volt Socket with Cigarette Lighter

A — 3-terminal socket

Terminal 15/30 of the 3-terminal power outlet socket provides a max. permanent direct current of 25 amps. Terminal 82 provides a max. permanent direct current of 5 amps. Terminal 31 is ground.
Turn key in key switch to the right to supply power to terminal 82. Terminal 15/30 is supplied with power even when the ignition is switched off.

IMPORTANT: When operating electrical consumers with high current draw and using multi-outlet power strips, the maximum permitted current load of the supply circuit must not be exceeded. Remember, total load comprises the sum of all the current consumers connected to the on-board circuit at any one time. This also applies if the consumers are connected to the on-board circuit at different sockets.

B — Signal socket to ISO Standard 11786

The 7-terminal signal socket (B) is protected by a 10-amp fuse.

Terminal	Wire color	Description
1	Red	Ground speed determined by radar
2	Brown	Wheel speed
3	Orange	Rear PTO speed
4	Yellow	Implement switch
5	—	—
6	Red	Power supply, 10 amps, max. 120 watts
7	Black	Ground

C — Socket for GreenStar™ display

A GreenStar™ display may be connected at socket (C).

D — ISOBUS socket in cab

An implement monitor meeting ISO Standard 11783 may be connected to socket (D).

E — 230-volt power outlet socket (max. 150 watts)

An electrical consumer with a requirement for max. 150 watts can be connected at socket (E).

• Green LED - Operational
• Red LED - Malfunction

LED lights up only when the connector is connected.

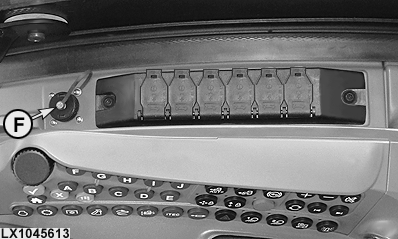

F — Socket for video camera

A video camera may be connected at socket (F).

G — 12-volt power outlet socket (max. 120 watts)

An electrical consumer with a requirement for max. 120 watts can be connected at the 12-volt power outlet socket.
